Description

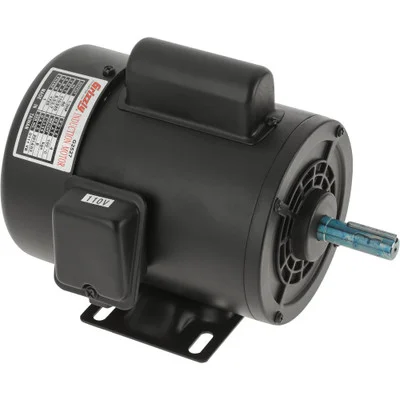

Grizzly Industrial Motor Single-Phase 1725 RPM TEFC 110V/220V is designed to replace old or worn-out motors in woodworking machines. The 1/3 HP and 1/2 HP models feature 1725 RPM speed, reversible rotation, and compatibility with 110V and 220V systems.
Designed to meet the same demanding standards as Grizzly’s heavy-duty machine motors, these versatile options are ideal for maintaining efficiency and extending the life of your equipment. Perfect for applications requiring robust construction and consistent power.
- Specifications and Dimensions
- Power: 1/3 HP or 1/2 HP
- Speed: 1725 RPM
- Voltage: 110V/220V (Prewired 110V)
- Type: Totally Enclosed Fan-Cooled (TEFC)
- Rotation: Reversible
- Phase: Single-phase
- Start Capacitor: 200MFD 125VAC
- Dimensions and Frame: NEMA 56
- U: 5/8″
- N: 1.89″
- Key: 3/16″
- C: 10.56″
- O: 7.49″
- D: 3.15″
- F: 2.95″
- E: 4.92″
- Key Features and Benefits
- TEFC design protects against dust, oil, and debris
- Reversible rotation for flexible use in multiple setups
- Available in 1/3 HP and 1/2 HP for varied power requirements
- Built to the same standards as Grizzly heavy-duty machines
- Compatible with both 110V and 220V power systems
