Description

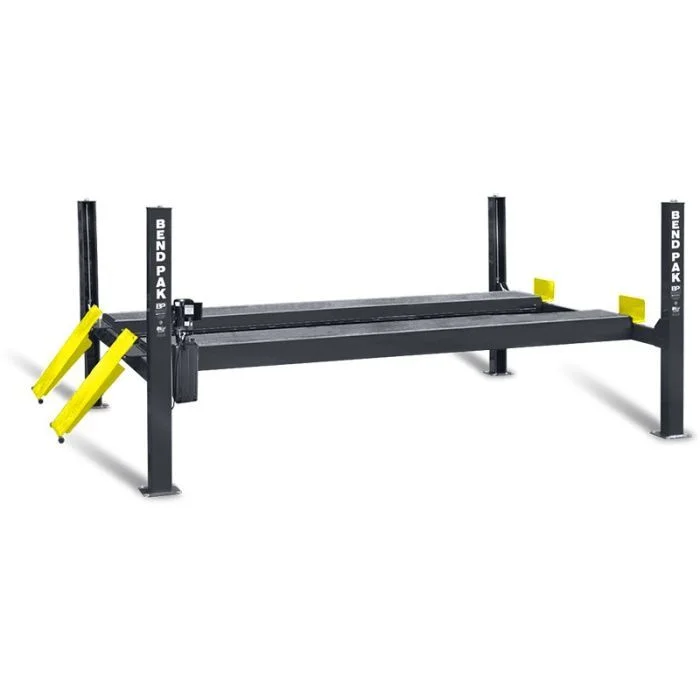

Specifications HDS-18E
- 18,000-lb. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Supersized 12″ diameter cable sheaves
- Galvanized lifting cables
- Grease nipples
- Single hydraulic under-runway cylinder
- Integrated flow restrictor
- Durable powder coat
- Spring-loaded safety locks
- Second lock system on constant guard
- Fully enclosed lifting cables
- Multiple adjustable height locking positions
- Maintenance-free electric hydraulic power system
- Conveniently positioned operator controls
- 12″ x 12″ base plates
- Runways feature a durable matte finish
- Optional rolling jacks
Capacity
Lifting Capacity*18,000 lbs. (8,165 kg)*Max Capacity / Front Axle9,000 lbs. (4,082 kg)*Max Capacity / Rear Axle9,000 lbs. (4,082 kg)
Rise
A – Min. Runway Height:9.5″ (241 mm)B – Max. Rise:60″ (1,524 mm)C – Max. Lifting Height:69.5″ (1,765 mm)Time to Full Rise:75 seconds
Outside Dimensions
D – Overall Width:153.5″ (3,899 mm)E – Outside Length:257″ (6,528 mm)F – Overall Length:312.75″ (7,944 mm)G – Height of Columns:91.25″ (2,318 mm)
Inside Dimensions
H – Width Between Columns:133.5″ (3,391 mm)I – Drive-Thru Clearance:109″ (2,769 mm)
Runways
J – Runway Width:22″ (559 mm)K – Length of Runways:255.5″ (6,490 mm)L – Width Between Runways:40″ (1,016 mm) or 45.25″ (1,149 mm)M – Runway Centerline:67.25″ (1,708 mm) or 72.5″ (1,842 mm)N – Outside Edge of Runways:89.25″ (2,267 mm) or 94.5″ (2,400 mm)
Minimum Wheelbase
Rated Capacity:185″ (4,699 mm)75% Capacity:160″ (4,064 mm)50% Capacity:135″ (3,429 mm)25% Capacity:110″ (2,794 mm)
Locking
Locking Positions:13Lock Spacing:Every 4″ / 100 mm
Power Unit
Motor:220 VAC / 60 Hz. 1Ph.Noise:45 dB
Shipping
Weight:6,003-lbs. (2,722 kg)Dimensions:265” x 27” x 36” (6,731 mm x 685 mm x 914 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact.
BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
WARNING: California Prop 65
