Description

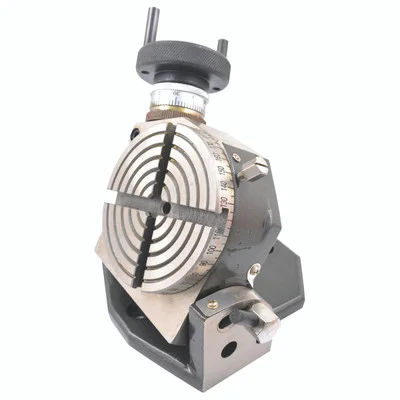

4″ Tilting Rotary Table ~ Table diameter is 110mm or 3.94″. ~ Horizontal overall height is 70mm or 2.76″. ~ Vertical overall height is 70mm. ~ Gear ratio is 36:1. ~ T-slot width is 7.95mm or 5/16″. ~ 4 t-slots. ~ 10 second vernier reading. ~ One rotation of handle equals 10 degrees on the collar. ~ Worm gear is easily disengaged for free rotation. ~ Tilts 0-90 degrees. ~ Base has two bolt holes that are 9.8mm or 0.386″ in diameter. Table diameter is 110mm or 3.94″. Horizontal overall height is 70mm or 2.76″. Vertical overall height is 70mm. Gear ratio is 36:1. T-slot width is 7.95mm or 5/16″.
