Description

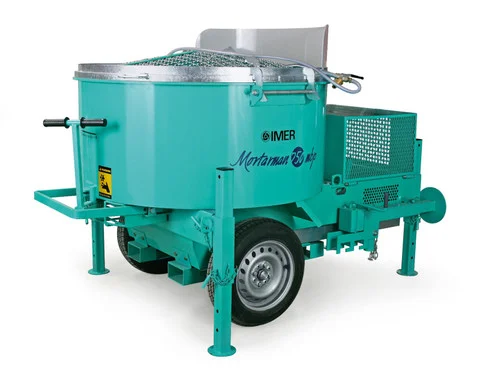

IMER Mix 750 Towable 18CF Vertical Shaft Mortar Mixer 208V /60Hz 3 Phase (1194645) is a robust and efficient mixer designed for high-volume projects. Ideal for the precast industry, this mixer offers exceptional performance and reliability.
The IMER Mix 750 features a powerful 7.5 HP 208V electric motor, ensuring consistent and efficient mixing. Its vertical shaft design allows for thorough mixing of various materials, making it perfect for mortar, stucco, and other construction applications. The towable design and pneumatic tires provide easy transport and setup on any job site.
- Specifications and Dimensions
- Drum capacity: 22 cubic feet
- Batch output: 17 cubic feet (approx. 1,700 lbs)
- Electric motor: 7.5 HP 208V 3 Phase
- Drum diameter: 51 inches
- Maximum aggregate size: 3/8 inch
- Discharge outlet height: 30 inches
- Pneumatic tires: 22 inches
- Weight: 1,700 lbs
- Dimensions (L x H x W): 90″ x 62″ x 63″
- Shipping Pallet Dimensions (L x H x W): 86″ x 64″ x 64″
- Key Features and Benefits
- High-volume output for large-scale projects
- Vertical shaft design for thorough mixing
- Powerful 7.5 HP 208V electric motor
- Adjustable support legs for easy setup
- Sealed shaft bearings for low maintenance
- Towable design for easy transport
- Controlled discharge for precise output
