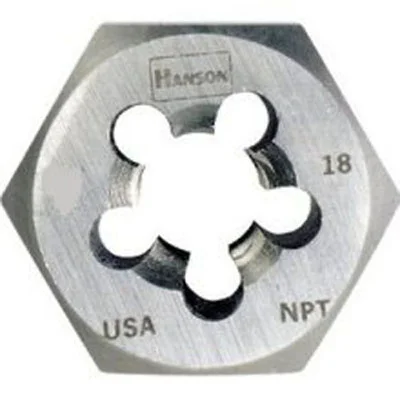

Irwin 3/8″-18 NPT Hexagon Re-threading Pipe Taper Die (7404)

Description

The Irwin 3/8″-18 NPT Hexagon Re-threading Pipe Taper Die (7404) is a specialized tool engineered for the precise repair and restoration of damaged threads on pipes. Crafted from high carbon steel, this die is built for reliability and performance in demanding applications. Its unique hexagon shape is a key design feature, allowing it to be used with common hand tools like a standard wrench or socket. This makes it an incredibly versatile and convenient tool for both professional plumbers and DIY enthusiasts working on plumbing and air pipe systems. The right-hand cutting direction and advanced geometry ensure a clean, accurate re-threading process, extending the life of pipes and fittings without the need for full replacement. With the thread size clearly etched on the tool, identification is simple and efficient. Whether you are performing routine maintenance or tackling a specific repair, the Irwin 7404 provides a dependable solution for restoring threaded connections to their original integrity.

KEY FEATURES AND BENEFITS:

• Thread Restoration: Specifically designed to repair and restore damaged threads on 3/8″-18 NPT (National Pipe Taper) pipes, ensuring a proper seal and fit.
• Hexagon Design: The innovative hexagon shape allows the die to be used with a standard wrench, socket, or a box-type wrench, providing flexibility in various working conditions and tight spaces.
• High Carbon Steel Construction: Made from high carbon steel, this die offers exceptional strength and durability, providing a long service life and reliable performance.
• Clear Identification: The thread size is clearly etched on the die, allowing for quick and easy identification, reducing the chance of using the wrong tool for the job.

SPECIFICATIONS:

• Model: Irwin / Hanson 7404
• Thread Size: 3/8″-18 NPT
• Hexagon Width: 1-7/16 inches
• Threads per Inch: 18
• Die Material: High Carbon Steel
• Cutting Direction: Right-hand
• Number of Flutes: 5

HOW TO USE:

1. Preparation: Ensure the damaged pipe is clean and free of debris. If necessary, use a wire brush to remove any rust or dirt from the existing threads.
2. Lubrication: Apply a suitable cutting oil to both the pipe threads and the die. This reduces friction and heat, resulting in a cleaner cut and extending the life of the tool.
3. Positioning: Place the die squarely over the damaged threads of the pipe. Ensure the die is aligned properly to follow the existing thread pattern.
4. Cutting: Using a wrench or socket on the hexagon head, turn the die clockwise. Apply steady, firm pressure while rotating. After each full turn, reverse the rotation slightly to break off chips and clear the flutes.
5. Completion: Continue turning the die until the re-threaded section is complete. Remove the die and clean the pipe to remove any metal shavings and excess oil.

BENEFITS OF USING IRWIN 3/8″-18 NPT HEXAGON RE-THREADING PIPE TAPER DIE (7404):

• Cost-Effective Repair: Rather than replacing an entire pipe section, this die allows you to simply fix the damaged threads, saving time and money.
• Versatile Application: The hexagon design enables the use of common wrenches, making it adaptable to a wide range of professional and home repair scenarios.
• Enhanced Tool Life: The use of high carbon steel and advanced geometry contributes to a longer tool lifespan, even with frequent use.
• Precise Results: The design ensures a clean and accurate thread restoration, which is crucial for creating a secure and leak-free seal in pipe connections.

FEATURES:

• Built from high-strength, shock-resistant S2 steel for extended durability.
• Optimized for right-hand threading operations.
• Advanced die geometry ensures smooth and accurate cutting performance.
• Size markings are permanently etched for quick and easy identification.
• Specifically designed for manual threading repair using common tools.
