Description

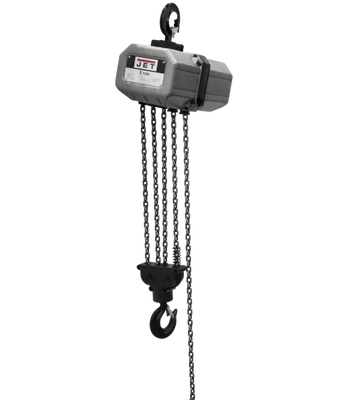

Jet 5SS-3C-15 5 Ton Prewired Electric Hoist with 15″ Lift (531500) is a powerful and versatile electric chain hoist, ideal for heavy-duty lifting tasks in commercial and industrial settings. With a lifting capacity of 5 tons (11,200 lbs) and a 15-foot lift height, this hoist can handle a wide range of applications.
KEY FEATURES AND BENEFITS:
- Durable Construction:
- Built with a tough, all-steel construction and a durable powder coat finish for lasting performance in demanding environments.
- Lifetime-lubricated gear train eliminates the need for regular maintenance.
- Grade 80 black oxide coated load chain ensures strength and wear resistance.
- Safety Features:
- Slip-clutch overload protection prevents lifting loads exceeding the hoist’s capacity.
- Upper and lower limit switches stop the chain travel at predetermined points for added safety.
- DC electro-magnetic brake automatically holds the load even during power outages.
- Reverse phase relay protects against incorrect wiring (3-phase models).
- Complies with ANSI/ASME B30.16 and HST-1 safety standards.
- Easy to Use:
- NEMA 4X compliant push-button control pendant enables easy operation from the ground.
- Lightweight and compact design simplifies installation and portability.
SPECIFICATIONS:
- Capacity: 5 tons (11,200 lbs)
- Lift Height: 15 feet
- Voltage: 230V/460V (prewired for 460V)
- Phase: 3-phase
- Motor: 2-1/7 HP
- Duty Cycle: 30% (H4 rating)
- Lifting Speed: 4.9 feet per minute
- Headroom: 30-11/16 inches
- Overall Width: 11.81 inches
- Weight: 238 lbs
HOW TO USE:
- Installation: The Jet 531500 should be mounted on a secure and stable overhead structure with a capacity exceeding the hoist’s lifting capacity. Refer to the manufacturer’s instructions for proper installation procedures.
- Pre-Lift Inspection: Ensure the hoist, chain, and hook are free from damage and functioning properly. Verify that the lifting load is securely attached to the hook.
- Operation: Use the push-button control pendant to raise and lower the load. Do not exceed the rated capacity of the hoist.
- Maintenance: Regularly inspect the hoist for wear and tear. Refer to the owner’s manual for recommended maintenance procedures.
BENEFITS OF USING Jet 5SS-3C-15 5 Ton Prewired Electric Hoist with 15″ Lift (531500):
- Increases lifting efficiency and productivity in various industrial applications.
- Provides a safe and reliable solution for heavy-duty lifting tasks.
- Durable construction ensures long-lasting performance.
- Easy to use and maintain.
FEATURES:
- 5-ton lifting capacity
- 15-foot lift height
- 230V/460V pre-wired operation
- 3-phase motor
- Durable all-steel construction
- Powder coat finish
- Lifetime-lubricated gear train
- Grade 80 black oxide load chain
- Slip-clutch overload protection
- Upper and lower limit switches
- DC electro-magnetic brake
- Reverse phase relay (3-phase models)
- NEMA 4X compliant push-button control pendant
- Meets safety standards (ANSI/ASME B30.16 and HST-1)
