Description

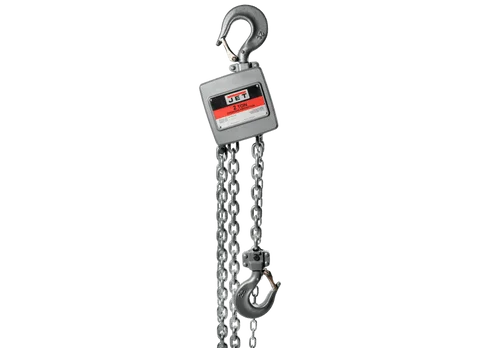

The Jet AL100-200-30 2-Ton Hand Chain Hoist w/ 30′ Lift (133230) is engineered for reliable and efficient manual lifting in industrial, construction, and maintenance applications. With a 2-ton (4,400 lb) capacity and a 30-foot lift height, this aluminum-bodied hoist offers lightweight handling without compromising strength. Its sealed housing protects critical components from dust, moisture, and other harsh elements, ensuring consistent performance in demanding environments. Equipped with cast steel safety latches and a dual pawl Weston-style brake, it provides secure and controlled lifting operations while meeting ANSI/ASME B30.16 and HAST-2 standards.
Features
- Lightweight aluminum construction for corrosion resistance
- Sealed housing to protect internal components
- Extra-large hand chain opening for smooth operation
- Cast steel safety latches for secure load handling
- Patented Fused Brake Design for improved safety
- Grade 100 load chain for maximum durability
Benefits
- Efficient lifting of heavy loads up to 2 tons
- Extended 30-foot lift for versatile applications
- Reliable braking system for operator safety
- Durable build for long-term use in harsh conditions
- Easy to operate and maintain
Technical Specifications
- Capacity: 2 tons (4,400 lbs)
- Lift Height: 30 feet
- Load Chain Dimensions: 8 x 24 mm
- Weight: 64.84 lbs
- Headroom: 15-3/8 inches
- Standards: ANSI/ASME B30.16, HAST-2
How to Use
- Inspect the hoist for wear or damage before use
- Attach the load chain securely to the lifting point
- Ensure the brake is engaged before lifting
- Pull the hand chain smoothly to raise the load
- Release the chain gradually to lower the load
- Disengage the brake once the load is safely grounded
