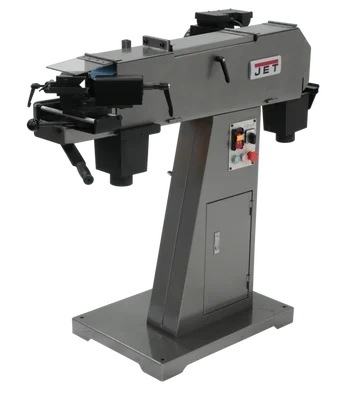

Jet DSAN4-1 230V 1PH 4HP Dual Station Abrasive Notcher (756180)

Description

The Jet DSAN4-1 230V 1PH 4HP Dual Station Abrasive Notcher (756180) is a powerful and versatile tool engineered to streamline your metalworking processes. Designed for professionals and hobbyists alike, this notcher excels at grinding, notching, and deburring tasks, making it an indispensable asset in any workshop.

KEY FEATURES AND BENEFITS:

• Two-Station Design: This innovative design allows for quick and seamless transitions between notching, grinding, and deburring stations, maximizing productivity and minimizing downtime.
• Versatility: The notcher accommodates a wide range of pipe sizes, from 1/2″ to 2-1/2″ OD, and allows for angle adjustments from 90 to 30 degrees, catering to diverse project requirements.
• Durability: Built with heavy-duty gauge steel, this notcher is engineered to withstand demanding use and deliver long-lasting performance.
• Safety: The totally enclosed fan-cooled motor prevents overheating, ensuring safe operation. Additionally, the notcher is CSA/CUS certified, adhering to strict safety and electrical standards.
• Convenience: User-friendly features like the forward/reverse switch, tool-less roll changing, multi-positional hand lever vise, quick belt changes, convenient storage for mandrels/rollers, and dual dust ports contribute to a smooth and efficient workflow.

SPECIFICATIONS:

• Motor Power: 3 HP, 230V, 1Ph
• Speed: 3400 RPM
• Angle Degrees: 90 to 30
• Roll Sizes: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″
• Pipe Notching Capacity: 1/2″ to 2-1/2″ OD
• Working Height: 40-3/4″
• Overall Dimensions (L x W x H): 47.24″ x 23.6″ x 46.5″
• Net Weight: 344 lbs
• Gross Weight: 510 lbs

HOW TO USE:

1. Preparation: Securely mount the notcher to a stable work surface. Ensure the power switch is off and the machine is unplugged.
2. Roll Selection: Choose the appropriate roller size for your pipe diameter and install it on the notching station.
3. Angle Adjustment: Set the desired notching angle using the angle adjustment mechanism.
4. Workpiece Placement: Position the workpiece in the hand lever vise and secure it tightly.
5. Notching: Turn on the power switch and carefully lower the notching head onto the workpiece.
6. Grinding/Deburring: Transition to the grinding or deburring station as needed, following similar procedures.
7. Cleanup: Use the dust ports to remove debris after each operation.

BENEFITS OF USING THE Jet DSAN4-1 230V 1PH 4HP Dual Station Abrasive Notcher (756180):

• Increased Efficiency: Streamline your workflow and reduce production time with the two-station design and user-friendly features.
• Enhanced Accuracy: The precise notching angle adjustments and secure workholding ensure consistent and accurate results.
• Improved Safety: The enclosed motor, safety switch, and CSA/CUS certification prioritize user safety.
• Versatility: Tackle a wide variety of projects with different pipe sizes and notching angles.
• Long-Term Value: The durable construction and reliable performance make this notcher a valuable investment for your workshop.

FEATURES:

• Forward/reverse switch for versatile grinding
• Tool-less roll changing for quick adjustments
• Multi-positional hand lever vise for secure workholding
• Convenient storage for mandrels/rollers
• Two 3″ dust ports for easy cleanup
