Description

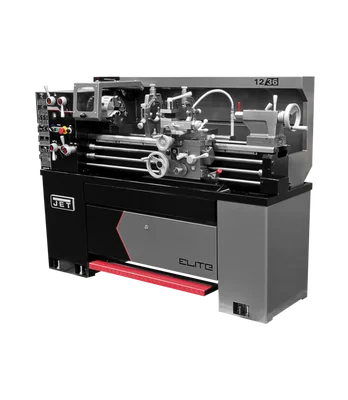

The Jet E-1236VS With ACU-RITE 203 CSS DRO With Taper Attachment (892308) is a versatile metalworking machine designed for precision turning in schools, small shops, and engineering labs. This compact 12×36 lathe offers a wide range of variable speeds (0-2000 RPM) thanks to its inverter drive system, making it suitable for various materials and project requirements.
KEY FEATURES AND BENEFITS:
- Precision and Control: The ACU-RITE 203 CSS DRO (Digital ReadOut) ensures accurate positioning for consistent results, while the included taper attachment allows machining of tapered workpieces.
- Variable Speed Control: The inverter drive system provides smooth and infinitely variable spindle speeds for optimal control during turning operations.
- Safety Features: The electromagnetic brake offers rapid stopping power, while chuck guards and an enclosed splash guard prioritize user safety.
- Durable Construction: The Meehanite cast iron bed and hardened, ground gears in the headstock minimize vibration and ensure long-lasting performance.
- Standard Equipment: This lathe comes ready to use with a 3-jaw chuck, faceplate, steady rest, follow rest, 4-way tool post, chuck guard, threading dial, coolant system, and more.
SPECIFICATIONS:
- Size: 12×36 (swing over bed diameter x distance between centers)
- Spindle Speeds: Variable (0-2000 RPM)
- Motor: 2 HP, 230V, 1 or 3 Phase
- Spindle Bore: 1-9/16″
- Swing Over Bed: 12″
- Swing Over Cross Slide: 7-5/16″
- Swing Through Gap: 17-1/2″
- Length of Gap: 9-1/2″
- Number of Spindle Speeds: Variable
- Range of Longitudinal Feeds (IPR): 0.0016 – 0.046
- Range of Cross Feeds (IPR): 0.0005 – 0.015
- Weight: 1212 lbs
HOW TO USE:
- Setup: Secure your workpiece in the chuck or between centers. Ensure all guards are in place and the coolant system is filled (if using).
- Power On and Speed Selection: Turn on the lathe and select the desired spindle speed using the controls. Refer to the manual for recommended speeds based on material and project requirements.
- Tool Selection: Choose the appropriate cutting tool for your project and mount it securely in the tool post.
- Machining: Engage the feed controls to start the cutting operation. The DRO system will provide real-time position feedback for precise control.
- Safety First: Always wear safety glasses and appropriate attire while operating the lathe. Follow proper machining techniques and power off the machine when finished.
BENEFITS OF USING Jet E-1236VS With ACU-RITE 203 CSS DRO With Taper Attachment (892308):
- Versatility: Handles a wide range of turning projects with its variable speed control and ability to accommodate various materials.
- Precision Machining: The DRO system and sturdy construction ensure accurate results for demanding applications.
- Safety Features: Built-in safety mechanisms prioritize user well-being during operation.
- Compact Footprint: Ideal for smaller shops and labs where space is a premium.
- Ready to Use: Includes all the necessary standard equipment to begin working right away.
FEATURES:
- ACU-RITE 203 CSS DRO for precise positioning
- Variable speed inverter drive system (0-2000 RPM)
- Taper attachment for machining tapered pieces
- Electromagnetic brake for rapid stopping
- Chuck guards and enclosed splash guard for safety
- Sturdy Meehanite cast iron bed
- Hardened and ground gears in headstock
- 3-jaw chuck, faceplate, steady rest, follow rest, 4-way tool post, threading dial, coolant system, and more (all included)
