Description

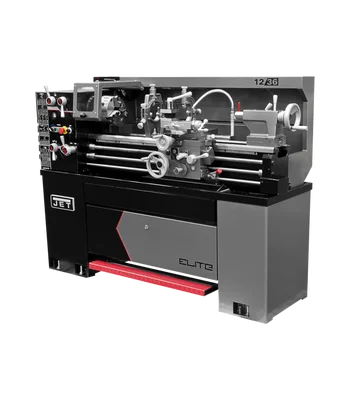

The Jet E-1236VS With Newall DP700 DRO With Taper & Collet Closer (892322) is a powerful and versatile benchtop lathe perfect for schools, small shops, and engineering labs. This compact lathe packs big features like an infinitely variable speed inverter drive system, digital readout (DRO), and a large 1-9/16″ spindle bore for tackling a wide range of turning projects.
KEY FEATURES AND BENEFITS:
- Compact Design: Fits in tight spaces while offering large lathe capabilities.
- Variable Speed Control: Infinitely variable spindle speeds (40-2000 RPM) for precise machining of various materials.
- Digital Readout (DRO): Provides accurate position measurement for improved control and repeatability.
- Precision Machining: Class 7 precision bearings and hardened gears minimize vibration for high-quality results.
- Durability: Certified Meehanite castings ensure the machine retains its tolerances over time.
- Safety Features: Electromagnetic brake for rapid stopping, overload clutch, and chuck guards enhance user safety.
- Convenience Features: LED readout for easy speed monitoring, integrated tool cabinet (on 12″ model), chip pan for easy cleaning, and fully lit workspace.
SPECIFICATIONS:
- Motor: 2 HP, 1 or 3 Phase
- Swing over bed: 12″
- Distance between centers: 36″
- Spindle Bore: 1-9/16″
- Chuck: 6″ 3-Jaw Chuck
- Spindle Speed Range (RPM): 40-365 RPM (low speed) / 165-2000 RPM (high speed)
- Weight: 1212 lbs
HOW TO USE:
- Assembly: Refer to the user manual for detailed assembly instructions. Generally, it involves mounting the headstock, tailstock, and bed on the stand, followed by installing the motor, electrical components, and accessories like the chuck and tool post.
- Safety First: Ensure you have proper personal protective equipment (PPE) like safety glasses and ear protection. Make sure the lathe is properly grounded and the emergency stop button is readily accessible.
- Material Setup: Mount your workpiece securely in the chuck or between centers. Tighten the chuck or center appropriately for the material and project requirements.
- Speed Selection: Choose the appropriate spindle speed based on the material and diameter of your workpiece. Refer to a machining chart for recommended speeds.
- Tool Selection: Select the appropriate cutting tool for your project and mount it securely in the tool post.
- Machining: Engage the spindle and start cutting. Use the carriage handwheel to feed the tool into the workpiece at a controlled rate while maintaining proper tool clearance.
- Stop and Adjustments: As needed, stop the spindle to make adjustments, measure your work, or clear chips.
BENEFITS OF USING Jet E-1236VS With Newall DP700 DRO With Taper & Collet Closer (892322):
- Versatility: Handles a wide range of turning projects with its variable speed control, large spindle bore, and digital readout for precise machining.
- Space-Saving Design: Ideal for schools, shops, and labs with limited space due to its compact footprint.
- Precision and Accuracy: Delivers high-quality results with its rigid construction, precision bearings, and digital readout.
- Durability: Built to last with certified Meehanite castings for long-term use.
- Safety Features: Provides a safe working environment with features like an electromagnetic brake, overload clutch, and chuck guards.
- User-Friendly: Includes convenient features like an LED readout, integrated tool storage, and easy chip removal for a smooth workflow.
FEATURES:
- Inverter drive system for infinitely variable spindle speeds
- Newall DP700 Digital Readout (DRO) for precise positioning
- Taper Attachment and Collet Closer for additional tooling options
- 6″ 3-Jaw Chuck for securing various workpiece shapes and sizes
- Steady Rest and Follow Rest for supporting long workpieces
- Chip Pan for easy cleaning of metal shavings
- Fully lit workspace with enclosed splash guard for improved visibility and coolant containment
- Sturdy stand with leveling pads for secure machine placement
