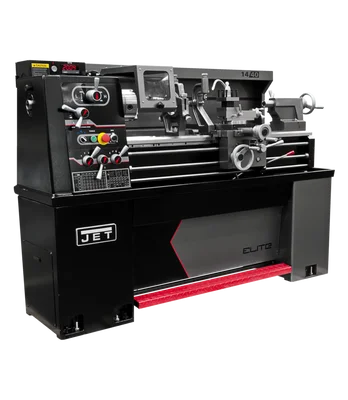

Jet E-1440VS Lathe With ACU-RITE 303 CSS DRO & Collet Closer (892467)

Description

Jet E-1440VS Lathe With ACU-RITE 303 CSS DRO & Collet Closer (892467) is a compact yet powerful machine designed for various applications. It features an ACU-RITE 303 CSS DRO for precise measurements and a collet closer for efficient tool changes.

KEY FEATURES AND BENEFITS:

• Compact Design: Fits into smaller spaces without sacrificing performance.
• ACU-RITE 303 CSS DRO: Provides accurate readings for precise cuts and measurements.
• Collet Closer: Enables quick and easy tool changes.
• Safety Features: Includes electromagnetic brake, chuck guards, and overload clutch for user protection.
• Durable Construction: Built with Meehanite castings for long-lasting performance.

SPECIFICATIONS:

• Size: 14 x 40
• Swing over bed: 14 inches
• Swing over cross slide: 8-5/8 inches
• Swing through gap: 20 inches
• Distance between centers: 40 inches
• Spindle bore: 1-1/2 inches
• Spindle speeds: Variable, 0-2,200 RPM
• Motor: 3 HP, 230V, 3Ph
• Weight: 1653 lbs
• Dimensions: 77 x 30 x 58 inches

HOW TO USE:

• Setting Up:
  • Place the lathe on a stable, level surface.
  • Connect the lathe to a power supply.
  • Secure the workpiece between the lathe centers or in a chuck.
  • Adjust the tool post to the desired height.
• Operating:
  • Turn on the power switch.
  • Set the desired spindle speed using the inverter.
  • Engage the feed mechanism for longitudinal or cross feeds.
  • Use the carriage and cross slide handles to move the tool.
  • Monitor the cutting process and adjust as needed.
• Safety:
  • Always wear safety goggles and appropriate clothing.
  • Use the emergency stop button in case of accidents.
  • Follow the operator’s manual for detailed safety instructions.

BENEFITS OF USING JET E-1440VS LATHE WITH ACU-RITE 303 CSS DRO & COLLET CLOSER (892467):

• Increased Productivity: Due to efficient operations.
• Improved Accuracy: With the ACU-RITE 303 CSS DRO.
• Enhanced Safety: With multiple safety features.
• Versatility: For various metalworking tasks.
• Durable Construction: For long-term use.

FEATURES:

• Electromagnetic assisted foot brake
• Inverter drive system
• Steady and follow rests
• Chuck guards
• CNC style lighting
• Hardened and ground gears
• Precision taper roller bearings
• Overload clutch
• Certified Meehanite castings
• Heavy-duty stand
• LED RPM readout
• CSA/CUS certified
