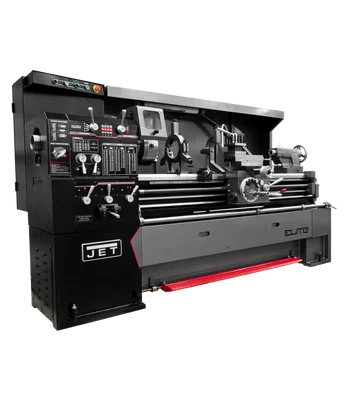

Jet EGH-1740 Lathe With Collet Closer (892501)

Description

The Jet EGH-1740 Lathe With Collet Closer (892501) is a robust and precise machine tool designed for efficient metalworking. Built with durability in mind, this lathe features Meehanite castings and precision engineering to deliver consistent performance and long-lasting use. Its geared head design offers a wide range of speeds, while the universal gearbox enables versatile threading without frequent gear changes.

KEY FEATURES AND BENEFITS:

• Durable Construction: Meehanite castings provide strength and rigidity.
• Precision Machining: Accurate components thanks to precision engineering.
• Versatile Speed Control: 16 speeds for various applications.
• Efficient Threading: Universal gearbox for easy thread adjustments.
• Safety Features: Enclosed coolant system, nylon safety gears, and overload protection.
• User-Friendly Design: Full-length splash guard, CNC-style lighting, and easy chip removal.

SPECIFICATIONS:

• Swing Over Bed: 17 inches
• Swing Over Cross Slide: 11 inches
• Distance Between Centers: 40 inches
• Spindle Bore: 3-1/8 inches
• Spindle Mount: D1-6
• Spindle Speeds: 12 (36-1800 RPM)
• Motor: 7-1/2 HP, 230/460V, 3Ph
• Weight: 3747 pounds
• Dimensions: 94 x 44 x 68 inches

HOW TO USE:

1. Setting Up:
   1. Ensure the lathe is securely placed on a level surface.
   2. Connect the lathe to a power supply matching its voltage and phase requirements.
   3. Inspect all safety features and ensure they are functioning correctly.
2. Basic Operation:
   1. Turn on the power switch.
   2. Select the desired spindle speed using the speed control lever.
   3. Mount the workpiece securely in the chuck or between centers.
   4. Engage the feed or threading mechanism as needed.
   5. Use the carriage and cross slide to manipulate the cutting tool.
   6. Monitor the cutting process and adjust as necessary.
   7. Engage the coolant system if required.
3. Safety Precautions:
   1. Always wear appropriate safety gear, including eye protection and hearing protection.
   2. Use caution when operating the lathe and avoid touching moving parts.
   3. Follow the operator’s manual for detailed safety instructions.

BENEFITS OF USING JET EGH-1740 LATHE WITH COLLET CLOSER (892501):

• Increased productivity: Efficient operation and versatile features.
• Improved accuracy: Precision engineering for precise machining.
• Enhanced safety: Built-in safety features for a secure working environment.
• Reduced maintenance: Durable construction and easy maintenance procedures.
• Cost-effective: Reliable performance and long-lasting use.

FEATURES:

• Meehanite castings
• Precision engineering
• Geared head design
• Universal gearbox
• 16 spindle speeds
• Enclosed coolant system
• Full-length splash guard
• CNC-style lighting
• Easy chip removal
• Safety features
