Description

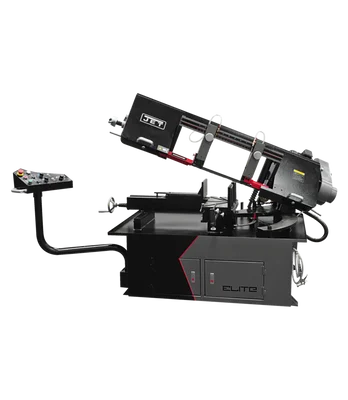

The Jet EHB-1018VMH 10×18″ Variable Miter Saw w/ Hydraulic Vise (891080) is a high-precision, semi-automatic variable miter saw designed for efficient and accurate cutting. Built with durability and safety in mind, this saw is a valuable addition to any professional workshop.
KEY FEATURES AND BENEFITS:
- Dual Mitering: Offers precise compound angle cuts up to 60° right and 45° left.
- Variable Speed Drivetrain: Allows for optimal blade speed control for various materials.
- Hydraulic Vise: Provides quick and secure clamping of materials for safe operation.
- Semi-Automatic Bow Raise: Enhances efficiency by automatically raising the saw after cutting.
- Automatic Blade Breakage Sensor: Improves safety by stopping the saw in case of blade failure.
- Heavy-Duty Construction: Reduces vibration and ensures stability for accurate cuts.
- Built-In Chip Brush: Maintains a clean working environment by removing chips.
- ELITE Swing Away Panel: Offers convenient control access for easy operation.
- Increased Saw Bed Height: Reduces user fatigue and improves ergonomics.
- Integrated Pressurized Wash Hose: Facilitates easy cleaning and maintenance.
SPECIFICATIONS:
- Cutting Capacity (W x D): 10 x 18 inches
- Round Cutting Capacity: 10 inches at 90°, 6 inches at 60°, 10 inches at 45°
- Rectangle Cutting Capacity: 10 x 17 inches at 90°, 10 x 7 inches at 60°, 10 x 12 inches at 45°
- Square Cutting Capacity: 10 x 10 inches at 90°, 7 x 7 inches at 60°, 10 x 10 inches at 45°
- Vise Swivels: 45 degrees
- Head Movement: 60 degrees
- Blade Size: 1 x 0.035 x 144 inches
- Blade Wheel Diameter: 14 inches
- Blade Speeds: 53 – 257 SFPM
- Bed Height: 27 inches
- Motor: 2 HP, 230/460V, 3Ph
- Amperage Draw: 7 amps at 230V 3Ph, 3.5 amps at 460V 3Ph
- Overall Dimensions: 85 x 40 x 44 inches
- Weight: 1144 lbs
- Drive: Variable Speed
HOW TO USE:
- Set Up: Place the saw on a stable, level surface. Ensure proper electrical connection.
- Adjust Blade Height: Raise or lower the blade to match the material thickness.
- Secure Material: Use the hydraulic vise to clamp the material firmly in place.
- Set Cutting Angle: Adjust the miter and bevel angles as needed for your desired cut.
- Start the Saw: Turn on the power switch and engage the blade.
- Make the Cut: Slowly and carefully feed the material into the blade.
- Stop the Saw: Turn off the power switch and release the blade.
- Clean the Saw: Use the pressurized wash hose to remove chips and debris.
BENEFITS OF USING JET EHB-1018VMH 10X18″ VARIABLE MITER SAW W/ HYDRAULIC VISE (891080):
- Precise and Accurate Cuts: Professional-quality results.
- Increased Efficiency: Semi-automatic bow raise and variable speed.
- Enhanced Safety: Automatic blade breakage sensor and hydraulic vise.
- Durable Construction: Long-lasting performance.
- Comfortable Operation: Increased saw bed height.
- Easy Maintenance: Built-in chip brush and pressurized wash hose.
FEATURES:
- Dual mitering
- Variable speed drivetrain
- Hydraulic vise
- Semi-automatic bow raise
- Automatic blade breakage sensor
- Heavy-duty construction
- Built-in chip brush
- ELITE swing away panel
- Increased saw bed height
- Integrated pressurized wash hose
