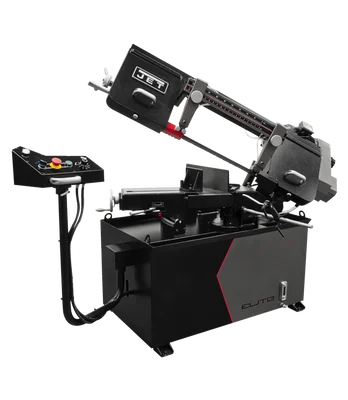

Jet EHB-8VSM 8×13″ 115/230V Variable Speed Mitering Bandsaw (891020)

Description

The Jet EHB-8VSM 8×13″ 115/230V Variable Speed Mitering Bandsaw (891020) is a versatile bandsaw designed for precision cutting in woodworking and metalworking applications.

KEY FEATURES AND BENEFITS:

• Mitering cuts up to 45°: Increased versatility in your projects.
• Variable speed control (82-310 SFPM): Allows for precise cutting of various materials.
• Hydraulic downfeed: Ensures smooth and controlled cuts.
• Large, adjustable table (up to 30″ height): Reduces user fatigue and improves comfort.
• Tungsten carbide blade guides: Enhance cutting accuracy and blade life.
• Automatic blade shutoff switch: Prioritizes safety during operation.
• Built-in chip brush: Maintains a clean work area.
• Coolant system: Keeps the blade and workpiece cool for optimal performance.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 115/230V, 1Ph
• Blade size: 1 x .035 x 114-1/2 in.
• Blade wheel diameter: 11-5/8 in.
• Cutting capacity (W x D): 8 x 13 in.
• Overall dimensions (L x W x H): 62-1/2 x 23 x 48 in.
• Weight: 792 lbs (net)

HOW TO USE:

1. Preparation: Secure your workpiece in the quick-positioning vise. Adjust the table height for a comfortable working position. Select the appropriate blade speed for your material.
2. Cutting: Power on the saw and engage the blade. Guide the material steadily against the fence for straight cuts. For mitered cuts, adjust the headstock to the desired angle.
3. Safety: Always wear safety glasses and gloves when operating the bandsaw. Maintain a firm grip on the material and keep your hands clear of the blade. Utilize the automatic blade shutoff switch when finished cutting.

BENEFITS OF USING Jet EHB-8VSM 8×13″ 115/230V Variable Speed Mitering Bandsaw (891020):

• Increased Versatility: Mitering capabilities and variable speed control allow for tackling diverse woodworking projects.
• Enhanced Precision: Features like tungsten carbide blade guides and adjustable table height promote accurate cuts.
• Improved Efficiency: The hydraulic downfeed system facilitates smooth cutting, while the chip brush and coolant system maintain a clean work environment.
• User Safety: The automatic blade shutoff switch and overall design prioritize operator safety.

FEATURES:

• Mitering capability (up to 45°)
• Variable speed control (82-310 SFPM)
• Hydraulic downfeed
• Adjustable table (up to 30″ height)
• Tungsten carbide blade guides
• Automatic blade shutoff switch
• Built-in chip brush
• Coolant system
• Quick-positioning vise
• Large handwheel with blade tensioning gauge
