Description

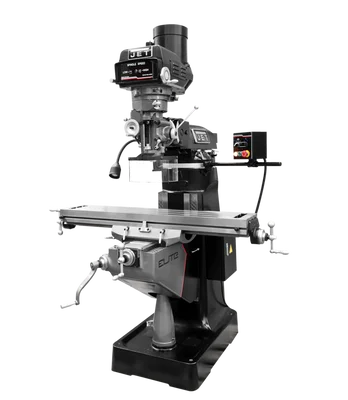

The Jet ETM-949 Mill 2-Axis ACU-RITE 203 DRO X Powerfeed & ADB (894111) is a high-performance milling machine designed for professional machinists. This versatile mill boasts exceptional precision, reliability, and operator safety, making it ideal for various metalworking applications.
KEY FEATURES AND BENEFITS:
- Industry-Leading Spindle Accuracy: The ETM-949 features a high-precision spindle assembly with class 7210 (P4, ABEC-7) precision angular bearings, minimizing runout to a mere 0.00012 inches. This translates to exceptional cutting accuracy for even the most demanding projects.
- Durable Spindle Construction: The fully hardened Chromium Molybdenum spindle undergoes a carbonizing treatment and precise grinding for unmatched tolerance control.
- Hand-Scraped Ways for Smooth Movement: The Y and Z-axis ways are meticulously hand-scraped to a minimum of 16 points per square inch, ensuring exceptional oil retention and smooth table travel for precise positioning.
- Heat-Treated Lead Screws & Double Nut Design: Heat-treated and polished lead screws, supported by thrust bearings, guarantee smooth table movements under load. Additionally, the advanced double nut design eliminates end-play for precise lateral control.
- Automatic Lubrication System: Every 30 minutes, the mill automatically lubricates itself with a precise flow, minimizing wear and tear while extending machine life.
- CSA-Certified & Spindle Safety Guard: The ETM-949 prioritizes operator safety with CSA/CUS certification and a standard-equipped spindle safety guard.
- X-Axis Powerfeed for Efficiency: The integrated X-axis powerfeed automates material feeding, streamlining your workflow and reducing operator fatigue.
- USA-Made Air Draw Bar: The air draw bar simplifies and expedites tool changes, boosting productivity.
SPECIFICATIONS:
- ACU-RITE 203 DRO for precise positioning on two axes (X & Y)
- Variable speed control for a wide range of materials (60 – 4,500 RPM)
- Hardened and ground table for a stable work surface
- Stainless steel Y-axis way cover for extra protection
- Meehanite castings for long-lasting rigidity
HOW TO USE:
- Set up the machine on a stable and level surface.
- Connect the machine to a suitable power supply (pre-wired for 230V operation).
- Adjust the spindle speed using the variable speed control to match the material and application.
- Use the X-axis powerfeed to automate material feeding for increased efficiency.
- Refer to the ACU-RITE 203 DRO for precise positioning during operations.
- Engage the spindle safety guard and use the emergency stop button for safety when needed.
- Ensure regular maintenance and check the automatic lubrication system for optimal performance.
BENEFITS OF USING Jet ETM-949 Mill 2-Axis ACU-RITE 203 DRO X Powerfeed & ADB (894111):
- Exceptional precision with industry-leading spindle accuracy and durable construction.
- Enhanced efficiency with X-axis powerfeed and USA-made air draw bar.
- Reliable performance with hand-scraped ways and heat-treated lead screws.
- Comprehensive safety features including spindle safety guard and CSA certification.
- Versatile applications with variable speed control and hardened work surface.
FEATURES:
- Rigid Meehanite cast iron base for stability and accuracy.
- Automatic lubrication system for extended machine life.
- Variable speed motor for adapting to various materials.
- ACU-RITE 203 DRO for real-time positioning.
- X-axis powerfeed for automated material feeding.
- Seamless steel quill for strength and precision.
- Spindle safety guard for operator safety.
- Conveniently mounted control box for easy access to functions.
- CSA certification for electrical compliance.
