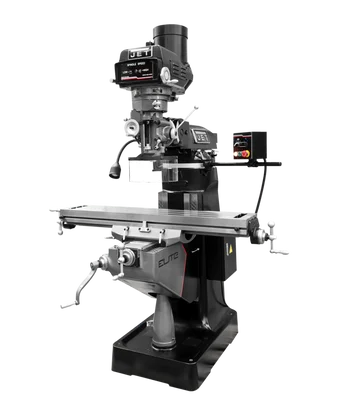

Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeeds (894126)

Description

The Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeeds (894126) is a high-performance knee mill designed for professional machinists and workshops requiring precision and durability.

KEY FEATURES AND BENEFITS:

• Unmatched Precision:
  • This mill boasts industry-leading features to achieve exceptional accuracy.
  • Class 7210 precision bearings minimize spindle runout to a mere 0.00012 inches.
  • Hand-scraped ways ensure smooth movement and optimal oil retention for consistent performance.
  • The variable speed motor (60-4,500 RPM) allows you to tailor cutting speeds for various materials.
• Built to Last:
  • The Jet 894126 ETM-949 Mill is constructed with rugged components to withstand heavy workloads.
  • Certified Meehanite castings provide a rigid base for vibration-free operation.
  • The hardened and ground table offers a stable platform for your workpieces.
  • The seamless, one-piece steel quill is induction hardened and chromed for increased strength and precision.
• Enhanced Efficiency:
  • Experience a more efficient workflow with features like automatic lubrication and a mounted control box housing all major mill functions.
  • The 3-axis ACU-RITE 203 digital readout provides precise positioning on the X, Y, and Knee axes.
  • Power feeds on the X and Y axes automate repetitive movements, saving you time and effort.
• Safety First:
  • Operator safety is paramount with the Jet 894126 ETM-949 Mill.
  • The electronic spindle brake ensures quick stopping power.
  • A safety guard protects users from accidental contact with rotating tools.
  • The mill is also CSA / CUS certified for electrical safety.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 203 (3-axis)
• Powerfeed: X & Y-Axis
• Table Size: 9″ x 49″
• Spindle Taper: R-8
• Number of Spindle Speeds: Variable (60-4,500 RPM)
• Work Table Weight Capacity: 550 lbs
• Overall Dimensions: 68″ x 63″ x 84″
• Weight: 2420 lbs

HOW TO USE:

1. Set up the machine on a stable and level surface.
2. Connect the machine to a suitable power supply (pre-wired for 230V operation).
3. Adjust the spindle speed using the variable speed control to match the material and application.
4. Use the X and Y-axis powerfeeds for automated and consistent table movement.
5. Refer to the ACU-RITE 203 DRO for real-time position data during operations.
6. Engage the spindle safety guard and use the emergency stop button for safety when needed.
7. Ensure regular maintenance and check the automatic lubrication system for optimal performance.

BENEFITS OF USING Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeeds (894126):

• High-precision spindle assembly with minimal runout for strict tolerance tasks.
• Enhanced durability with heat-treated and polished lead screws, advanced double nut design, and automatic lubrication.
• Optimized efficiency with variable speed control, 3-axis DRO, and X and Y-axis powerfeeds.
• Large table and powerful motor for versatile and demanding applications.
• Comprehensive safety features including spindle safety guard and stainless steel Y-axis way cover.

FEATURES:

• Certified Meehanite castings for stability and accuracy.
• Heat-treated and polished lead screws supported by thrust bearings.
• Advanced double nut design for minimal backlash.
• Automatic lubrication system for extended machine life.
• Variable speed control for adapting to various materials.
• 3-axis ACU-RITE 203 DRO for real-time positioning.
• X and Y-axis powerfeeds for automated table movement.
• Stainless steel Y-axis way cover for extended protection.
• Spindle safety guard for operator safety.
• 3 HP motor for demanding tasks.
