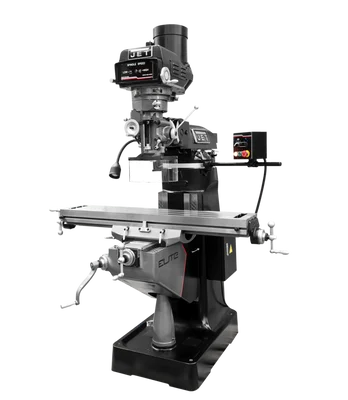

Jet ETM-949 Mill Servo X Axis Powerfeed Air Powered Draw Bar (894176)

Description

The Jet ETM-949 Mill Servo X Axis Powerfeed Air Powered Draw Bar (894176) is a high-performance knee mill designed for professional machinists and machine shops seeking precision and efficiency.

KEY FEATURES AND BENEFITS:

• Best-in-class spindle with class 7210 bearings for exceptional accuracy (runout of 0.00012″).
• Hand-scraped ways ensure smooth operation and minimal wear.
• One-piece, steel quill is induction hardened and chromed for strength and precision.
• Heat-treated and polished lead screws with thrust bearings for smooth, precise table movements.
• Meehanite castings ensure long-term retention of tolerances.
• Spindle safety guard, emergency stop button, and CSA safety standards compliance for operator safety.

SPECIFICATIONS:

• Spindle Taper Runout: 0.00012″
• Spindle Speed Range: 60 – 4,500 RPM
• Table Size: 9″ x 49″
• Table Longitudinal Travel: 36″
• Table Cross Travel: 12″
• Knee Travel: 16″

HOW TO USE:

1. Ensure all safety features are engaged before starting the mill.
2. Adjust the spindle speed to suit the material being milled.
3. Utilize the servo X-axis powerfeed for automated table movements.
4. Use the USA-made air-powered drawbar for quick tool changes.
5. Monitor and maintain lubrication using the automatic lubrication system.

BENEFITS OF USING Jet ETM-949 Mill Servo X Axis Powerfeed Air Powered Draw Bar (894176):

• Ideal for a wide range of milling applications in professional machine shops.
• Provides exceptional accuracy and efficiency with industry-leading features.

FEATURES:

• Variable speed range from 60 to 4,500 RPM.
• Servo X-axis powerfeed for automated table movement.
• USA-made air-powered drawbar for fast and efficient tool changes.
• Automatic lubrication system for extended machine life.
• CSA-certified for operator safety.
• Durable construction with Meehanite castings.
