Description

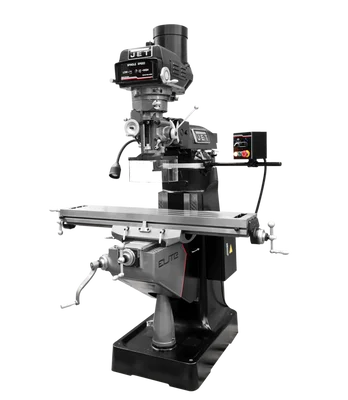

The Jet ETM-949 Mill with Y-Axis JET Powerfeed (894101) is a premium machine designed for precision milling of various materials. This Elite model boasts exceptional features for demanding applications.
KEY FEATURES AND BENEFITS:
- High-precision spindle assembly for strict tolerances
- Hand-scraped ways for smooth table movements and oil retention
- Certified Meehanite® castings for rigidity and dimensional stability
- Automatic lubrication system
- Y-axis powerfeed for automated material feeding
- Variable speed control for material versatility
- Electronic spindle brake for safety
- Spindle safety guard
- Ball bearing supported motor shaft for quiet operation
- Hardened and ground table for milling diverse materials
SPECIFICATIONS:
- Table size: 9″ x 49″
- Spindle taper: R-8
- Quill diameter: 3-3/8″
- Collet capacity: 1/8″ – 7/8″
- Number of Spindle Speeds: Variable
- Range of Spindle Speeds (RPM): 60 – 4,500
- Motor (HP): 3 HP, 230/460V, 3 Ph
- Weight: 2420 Lbs.
HOW TO USE:
Follow these simple steps to use the Jet 894101 ETM-949 Mill with Y-Axis JET Powerfeed:
- Ensure the machine is securely positioned on a stable surface.
- Adjust the variable speed control to match the material you are milling.
- Activate the electronic spindle brake before starting the machine.
- Securely attach the workpiece to the table using appropriate clamps or fixtures.
- Engage the Y-axis powerfeed for automated material feeding, adjusting as needed.
- Monitor the operation, ensuring safety guards are in place throughout the milling process.
BENEFITS OF USING Jet ETM-949 Mill with Y-Axis JET Powerfeed (894101)
- High precision and accuracy for demanding machining tasks.
- Robust construction ensures longevity and reliability.
- Enhanced safety features protect operators during operation.
- Efficient workflow with automated material feeding.
- Versatile capabilities suitable for a wide range of milling projects.
