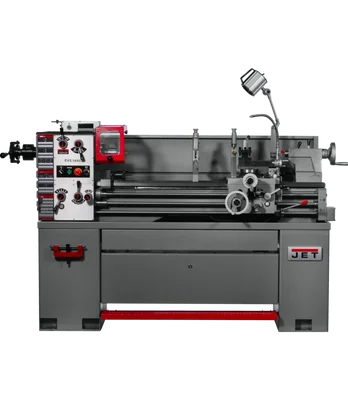

Jet EVS-1440 Variable Speed Lathe w/ Acu-rite 203 DRO & Taper (311447) is a professional-grade electronic variable speed lathe engineered for precision, versatility, and high productivity in your workshop. This lathe is built with durable Meehanite castings, ensuring long-term rigidity and tolerance retention, making it a valuable asset for years to come.
KEY FEATURES AND BENEFITS:
- Precision Machining: D1-4 precision ground spindle with class 7 tapered roller bearings guarantees minimal runout (max 0.0004″).
- Variable Speed Control: Easily adjust the spindle speed from 40 to 2000 RPM for optimal performance with various materials and operations.
- Expanded Capability: Includes a taper attachment for turning tapers and a collet closer for secure workpiece holding.
- User-Friendly: Features an LED RPM readout, spindle jog button, electronic chuck key docking station, and front removable chip tray for convenience.
- Durability: Built with Meehanite castings, induction hardened and ground V-way bed, and splined shafts for long-lasting reliability.
- Safety: Equipped with a safety on/off switch, emergency stop button, chuck guard, and foot brake.
SPECIFICATIONS:
- Swing Over Bed: 14 inches
- Swing Over Cross Slide: 9-1/16 inches
- Distance Between Centers: 40 inches
- Spindle Bore: 1-1/2 inches
- Spindle Mount: D1-4
- Spindle Speeds: 40-2000 RPM
- Digital Readout: Acu-Rite 203
- Motor: 3HP, 230V, 3Ph
- Overall Dimensions: 68.5 x 28.3 x 50 inches
- Weight: 1320 lbs (net), 1584 lbs (gross)
- Warranty: 2 years
HOW TO USE:
- Preparation: Ensure the lathe is properly leveled and securely mounted. Install the chuck or desired workpiece holding accessory.
- Power Up: Turn on the lathe and check the coolant system.
- Adjust Speed: Use the control panel to set the desired spindle speed. Monitor the LED RPM readout for accuracy.
- Secure Workpiece: Mount the workpiece securely in the chuck or collet closer.
- Engage Feed: Choose the appropriate feed rate and direction.
- Start Turning: Begin the turning operation, utilizing the tool rest for support and control.
- Monitor and Adjust: Continuously monitor the digital readout (DRO) for precise measurements and adjustments.
- Stop and Inspect: Regularly stop the lathe to inspect the workpiece and make any necessary tool changes or adjustments.
- Finish and Clean: After completing the operation, turn off the lathe, remove the workpiece, and clean the machine thoroughly.
BENEFITS OF USING Jet EVS-1440 Variable Speed Lathe w/ Acu-rite 203 DRO & Taper (311447):
- Increased Productivity: Efficient operation and precise controls help you complete tasks faster.
- Improved Accuracy: Digital readout and precision components minimize errors.
- Versatility: Wide range of accessories and capabilities allow for various turning operations.
- Long-Term Investment: Durable construction ensures years of reliable service.
FEATURES:
- Electronic Variable Speed: Offers precise control over spindle speed for optimal cutting performance.
- Acu-Rite 203 DRO: Provides accurate real-time measurements for precise machining.
- Taper Attachment: Enables turning of tapered workpieces.
- Collet Closer: Provides secure holding of workpieces for added precision.
- Gap Bed: Accommodates larger diameter workpieces.
