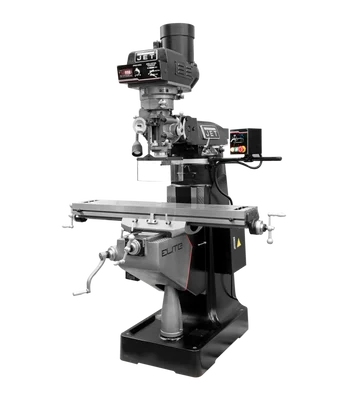

Jet EVS-949 Mill 2-Axis ACU-RITE 203 DRO Servo XY Powerfeed (894384)

Description

The Jet EVS-949 Mill 2-Axis ACU-RITE 203 DRO Servo XY Powerfeed (894384) is a high-end vertical milling machine designed for precision and reliability. It’s part of Jet’s Elite series, known for its top-of-the-line features.

KEY FEATURES AND BENEFITS:

• Superior Accuracy: Achieve exceptional results with an industry-leading spindle runout of 0.00012 inches, thanks to class 7210 bearings and hand-scraped ways.
• Enhanced Durability: Built to last with Meehanite castings, a hardened and ground table, and an automatic lubrication system.
• Servo-Driven Powerfeeds: Automate table movements in the X and Y axes for increased efficiency and control.
• USA-Made Air Power Draw Bar: Securely hold cutting tools for reliable performance.
• ACU-RITE 203 DRO: Simplify positioning tasks with a user-friendly digital readout system.
• Operator Safety: Includes a spindle safety guard, emergency stop button, and CSA certification for peace of mind.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 203
• Powerfeed: X & Y-Axis (Servo)
• Power Draw Bar: USA Made
• Table Size (L x W) (in.): 9 x 49
• Spindle Taper (in. x TPI): R-8
• Quill Diameter (in.): 3-3/8
• Number of Spindle Speeds: Electronic Variable
• Range of Spindle Speeds (RPM): 60 – 5,000
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (in.): 36
• Table Cross Travel (in.): 12
• Work Table Weight Capacity (lbs.): 550
• Motor (HP): 3 HP, 230V, 3 Ph
• Overall Dimensions (L x W x H) (in.): 68 x 63 x 84
• Weight (lbs.): 2,300

HOW TO USE:

1. Consult the user manual for detailed instructions on setup, operation, and maintenance.
2. Ensure the mill is properly installed and aligned according to manufacturer guidelines.
3. Utilize the ACU-RITE 203 DRO for precise positioning of the cutting tool.
4. Engage the servo-driven powerfeeds for automated movement during machining operations.
5. Adjust spindle speeds to match material requirements for optimal cutting performance.
6. Maintain the automatic lubrication system to ensure smooth operation and prolong machine life.
7. Operate the mill safely using the included safety features such as the spindle safety guard and emergency stop button.

BENEFITS OF USING Jet EVS-949 Mill 2-Axis ACU-RITE 203 DRO Servo XY Powerfeed (894384):

• Achieve high-precision machining results for diverse materials.
• Increase productivity with automated table movements via servo feeds.
• Ensure operator safety with built-in safety features.
• Experience long-lasting machine performance with a durable construction.

FEATURES:

• Hand-scraped ways for smooth table movement.
• Hardened and ground table for stability and accuracy.
• Electronic spindle brake for accidental startup prevention.
• Variable speed control for optimal machining conditions.
• Stainless steel Y-axis way cover for extended protection.
