Description

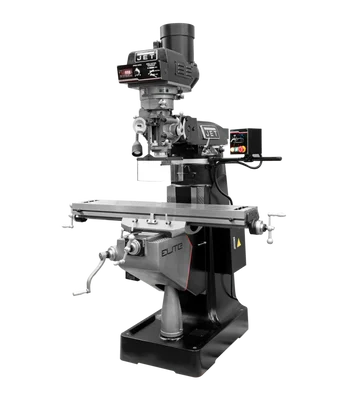

The Jet EVS-949 Mill 2-Axis ACU-RITE 303 DRO X-Axis JET Powerfeed (894331) is a professional-grade milling machine designed for demanding applications. As part of Jet’s Elite series, it embodies a commitment to precision, durability, and advanced features.
KEY FEATURES AND BENEFITS:
- Hand-scraped Y and Z-axis ways for smooth movement and precise alignment
- 2-axis ACU-RITE 303 DRO for real-time measurements on the X and Y axes
- Constructed with certified Meehanite® castings for stability and vibration dampening
- Chromium molybdenum spindle, fully hardened and precisely ground, maintains strict tolerances
- Automatic lubrication system ensures consistent maintenance of critical components
SPECIFICATIONS:
- Table Size: 9″ x 49″
- Spindle Taper: R-8
- Spindle Speed: 60-5,000 RPM (Electronic Variable)
- Quill Travel: 5″
- Motor: 3 HP, 230V, 3 Phase
- Overall Dimensions: 68″ x 63″ x 84″
- Weight: 2,300 lbs
HOW TO USE:
Follow these steps to effectively use the Jet 894331 EVS-949 Mill:
- Ensure the machine is properly powered and the emergency stop is disengaged.
- Set the desired speed and feed rate using the controls.
- Securely clamp the workpiece to the table.
- Use the ACU-RITE 303 DRO to position the mill for accurate cuts.
- Engage the X-axis JET Powerfeed for automated table movement.
- Monitor the operation and adjust settings as needed.
BENEFITS OF USING Jet EVS-949 Mill 2-Axis ACU-RITE 303 DRO X-Axis JET Powerfeed (894331):
- Enhanced productivity with automated X-axis power feed
- Precision milling with industry-leading spindle taper runout of 0.00012″
- Long-term durability with robust construction and automatic lubrication system
- Improved safety features including CSA/CUS certification and electronic spindle brake
