Description

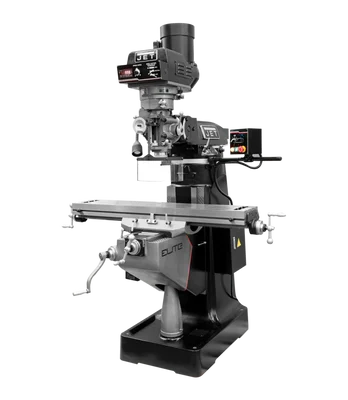

The Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeed (894327) is a versatile and precise milling machine designed for demanding applications. This feature-packed mill boasts high accuracy and reliability, making it ideal for professional machinists and serious hobbyists.
KEY FEATURES AND BENEFITS:
- Accurate Spindle Assembly: Engineered for strict tolerance requirements with a Chromium Molybdenum spindle and precision bearings.
- Durable Construction: Certified Meehanite castings ensure rigidity and minimal deflection during heavy machining.
- Enhanced Efficiency: Automatic lubrication system minimizes maintenance and extends machine life.
- Operator Safety: Includes spindle safety guard, electronic brake, and emergency stop button for user protection.
- Advanced Functionality: 3-axis DRO system provides digital readouts for precise positioning, while X and Y-axis powerfeeds automate repetitive tasks.
- USA-Made Power Draw Bar: Delivers reliable toolholding for various milling operations.
SPECIFICATIONS:
- Table Size (L x W): 9 x 49 in.
- Spindle Taper: R8
- Spindle Speeds: 60 – 5,000 RPM (Variable)
- Quill Travel: 5 in.
- Table Longitudinal Travel: 36 in.
- Table Cross Travel: 12 in.
- Motor: 3 HP, 230V, 3-Phase
- Weight: 2,300 lbs.
HOW TO USE:
- Consult the user manual for detailed setup, operation, and maintenance instructions.
- Ensure the machine is properly set up and powered with the appropriate electrical supply.
- Select the appropriate cutting speed using the variable spindle speeds (60-5,000 RPM).
- Use the 3-axis ACU-RITE 203 DRO system for precise positioning of the cutting tool.
- Engage the X and Y-axis powerfeeds for automated material removal.
- Utilize the USA-made power draw bar for secure tool holding and quick tool changes.
- Monitor the automatic lubrication system to ensure all components are properly lubricated as per manufacturer recommendations.
BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeed (894327):
- Increased Accuracy: Delivers exceptional precision for creating intricate features in your projects.
- Enhanced Efficiency: Automates repetitive tasks and reduces overall machining time.
- Improved Durability: Built with robust components for long-lasting performance.
- Versatile Functionality: Handles diverse milling applications with ease.
- Operator Safety: Prioritizes user safety with built-in safety features.
FEATURES:
- 3-Axis ACU-RITE 203 DRO System
- X and Y-Axis Powerfeeds
- USA-Made Power Draw Bar
- Hardened and Ground Table
- Automatic Lubrication System
- Spindle Safety Guard
- Electronic Spindle Brake
- Stainless Steel Y-Axis Way Cover
