Description

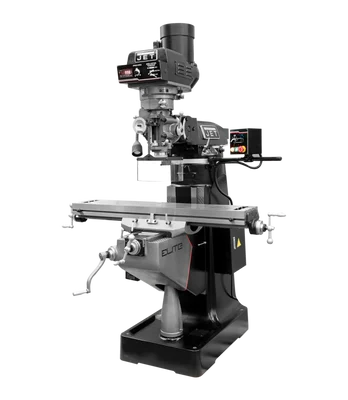

Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeeds (894326) is a professional-grade milling machine engineered for precision, reliability, and operator safety. This mill, part of Jet’s Elite series, boasts a range of features designed to meet the demanding needs of workshops and manufacturing facilities.
KEY FEATURES AND BENEFITS:
- Industry-leading spindle taper runout of 0.00012″ with class 7210 (P4, ABEC-7) angular bearings
- Fully hardened and ground chromium molybdenum spindle for tight tolerances
- Induction hardened and chromed one-piece steel quill for added strength and accuracy
- Meticulously hand-scraped Y and Z-axis ways for enhanced oil retention and smooth movements
- Heat-treated and polished lead screws supported by thrust bearings for smooth table movement under load
- Certified Meehanite® castings ensure long-term tolerances and rigidity
- Hardened and ground table provides a stable platform for diverse materials
- Patented vari-disc key with superior wear resistance
- Ground and balanced variable speed pulleys for smooth transitions
- Ball bearing motor shaft support for quiet and accurate operation
- Automatic lubrication system for consistent performance and longevity
SPECIFICATIONS:
- Table Size: 9″ x 49″
- Spindle Taper: R-8
- Motor: 3 HP
- Spindle Speed Range: Variable, 60 – 4,500 RPM
HOW TO USE:
For optimal use of the Jet EVS-949 Mill, follow these steps:
- Ensure the machine is properly powered and all safety guards are in place.
- Securely mount your workpiece on the table using appropriate clamping methods.
- Use the ACU-RITE 203 DRO to precisely position your workpiece.
- Engage the X and Y-axis power feeds for automated movements.
- Select the appropriate spindle speed using the variable speed pulleys for your material.
- Monitor the milling operation closely, adjusting settings as needed for optimal results.
BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XY Powerfeeds (894326):
- Enhanced precision and reliability for demanding machining tasks
- Durable construction ensures longevity and stability
- Automation features increase productivity and ease of operation
- Advanced safety features promote a secure working environment
