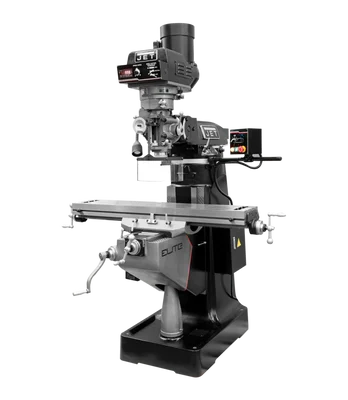

Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894329)

Description

Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894329) is a professional-grade milling machine designed to meet the demanding requirements of precision machining. With its robust construction, advanced features, and meticulous attention to detail, this mill delivers exceptional performance and accuracy for a wide range of machining applications.

KEY FEATURES AND BENEFITS:

• Precision Spindle Assembly: Ensures industry-leading accuracy with class 7210 (P4, ABEC-7) precision angular bearings, a hardened and ground chromium molybdenum spindle, and a seamless, one-piece steel quill.
• Hand-Scraped Ways: Provides superior oil retention and smooth, precise movements on the Y and Z axes, enhancing the machine’s overall precision and longevity.
• Enhanced Durability: Features heat-treated and polished lead screws, a patented vari-disc key with increased wear resistance, and variable speed pulleys for smooth operation and reduced vibration.
• Operator Safety: Certified by CSA/CUS and equipped with an electronic spindle brake to prevent accidental startups, a mounted control box with emergency stop, and a stainless steel Y-axis way cover for added protection.
• Convenient Features: Includes automatic lubrication every 30 minutes, a 3 HP motor, a 3-axis DRO system for precise measurements, and power feeds on all axes for increased productivity.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 203 (3-Axis)
• Powerfeed: X, Y, & Z-Axis
• Power Draw Bar: USA Made
• Table Size: 9″ x 49″
• Spindle Taper: R-8
• Spindle Speed Range: 60-5,000 RPM (Electronic Variable)
• Travel (X/Y/Z/Knee/Ram): 36″/12″/16″/16″/14″
• Motor: 3 HP, 230V, 3 Ph
• Overall Dimensions: 68″ x 63″ x 84″
• Weight: 2,300 lbs

HOW TO USE:

1. Preparation: Ensure the mill is properly installed and leveled. Familiarize yourself with the controls and safety features.
2. Workpiece Setup: Secure the workpiece to the table using clamps or a vise.
3. Tool Selection: Choose the appropriate cutting tool for the desired operation.
4. Tool Installation: Install the tool in the spindle and tighten the drawbar.
5. Program Setup (if applicable): If using CNC capabilities, program the desired toolpaths and movements.
6. Zeroing: Set the zero point for each axis using the DRO.
7. Operation: Start the spindle and carefully engage the power feeds or manually control the axes to perform the machining operation.
8. Monitoring: Monitor the cutting process and adjust parameters as needed.
9. Completion: Stop the spindle and power feeds, remove the workpiece, and clean the machine.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894329):

• Precision: Achieve tight tolerances and high-quality surface finishes.
• Durability: Rely on a robust machine built to withstand heavy use.
• Productivity: Automate tasks with power feeds and enjoy quick tool changes.
• Safety: Benefit from CSA/CUS certification and built-in safety features.
• Versatility: Handle a wide range of materials and machining operations.

FEATURES:

• 3 HP motor
• Hardened and ground table
• Meehanite® castings
• Electronic spindle brake
• Halogen work lamp
• Coolant system
• Way wipers
• One-shot lubrication
