Description

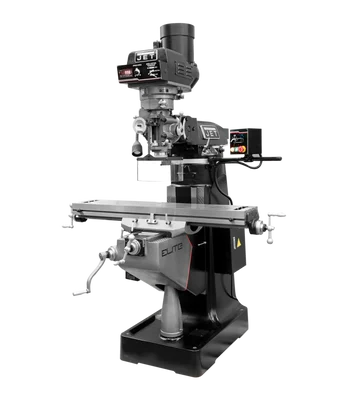

Jet EVS-949 Mill 3-Axis ACURITE 203(Knee) DRO Servo XYZ Pwrfd (894398) is a professional-grade machining center designed to handle a wide range of milling operations with exceptional accuracy and longevity. Built to rigorous standards, this mill offers a combination of precision, power, and user-friendly features that make it a valuable asset in any machine shop or industrial setting.
KEY FEATURES AND BENEFITS:
- Precision Spindle: Class 7210 (P4, ABEC-7) precision angular bearings ensure industry-leading spindle taper runout of 0.00012″ for high-precision machining.
- Durability: Hardened chromium molybdenum spindle, induction-hardened quill, and hand-scraped ways guarantee long-lasting performance and accuracy even under heavy use.
- Servo Powerfeeds: The 3-axis ACU-RITE 203 DRO with servo powerfeeds on the X, Y, and Z axes provides smooth, precise control for accurate positioning and efficient operation.
- Versatility: A variable speed range of 60-5,000 RPM, R-8 spindle taper, and a 9″ x 49″ table accommodate a wide variety of milling tasks and materials.
- Safety: CSA/CUS certified, the mill includes a spindle safety guard, electronic spindle brake, and emergency stop button for enhanced operator safety.
- Additional Features: Automatic lubrication, stainless steel Y-axis way cover, and a USA-made air-powered drawbar enhance convenience and maintenance.
SPECIFICATIONS:
- Table Size: 9″ x 49″
- Spindle Taper: R-8
- Quill Diameter: 3-3/8″
- Motor: 3 HP, 230V, 3 Ph
- Overall Dimensions: 68″ x 63″ x 84″
- Weight: 2,300 lbs
HOW TO USE:
- Preparation: Ensure the mill is properly leveled and installed according to the manufacturer’s instructions.
- Workpiece Setup: Securely mount your workpiece to the table using appropriate clamps or fixtures.
- Tool Selection: Choose the correct milling cutter for your desired operation and install it in the spindle.
- Program DRO (if applicable): Input the desired dimensions and coordinates into the digital readout system to control the precise movement of the axes.
- Start Milling: Initiate the milling operation, adjusting the spindle speed and feed rate as needed.
- Monitor and Adjust: Regularly check your workpiece and make any necessary adjustments to ensure accurate results.
- Safety First: Always wear appropriate safety gear and follow safe operating procedures.
BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACURITE 203(Knee) DRO Servo XYZ Pwrfd (894398):
- Precision: Achieve tight tolerances and superior surface finishes for high-quality parts.
- Durability: Built to withstand heavy use and maintain accuracy over time.
- Efficiency: Servo powerfeeds and DRO streamline operations, reducing setup time and increasing productivity.
- Versatility: Handle a wide range of milling projects with various materials.
- Safety: Prioritizes operator safety with certifications and built-in safety features.
FEATURES:
- Hand-scraped ways for smooth movement and greater oil retention.
- Heat-treated and polished lead screws with thrust bearings for precise table movement.
- Patented vari-disc key for enhanced wear resistance.
- Variable speed pulleys for reduced vibration and smooth speed transitions.
- Ball bearing support for quiet and accurate motor operation.
