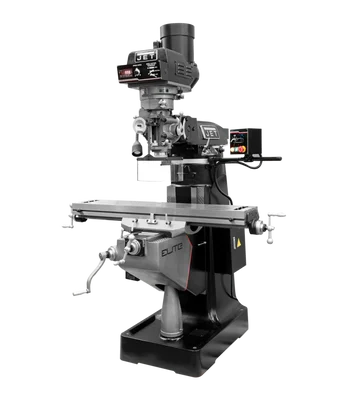

Jet EVS-949 Mill 3-Axis ACURITE 303(Quill) DRO Servo XY Pwrfd (894407)

Description

The Jet EVS-949 Mill 3-Axis ACURITE 303 (Quill) DRO Servo XY Pwrfd (894407) is a high-performance vertical milling machine designed for professional machinists and workshops. It prioritizes accuracy and efficiency with features like hand-scraped ways, precision bearings, and an automatic lubrication system.

KEY FEATURES AND BENEFITS:

• Precision Machining: Achieve tight tolerances with features like hand-scraped ways, high-precision spindle bearings, and a rigid Meehanite casting for minimal deflection.
• Automated Efficiency: Automate repetitive tasks with servo-driven X and Y-axis power feeds and an ACU-RITE 303 digital readout system for precise positioning.
• Durability and Reliability: The seamless, one-piece steel quill is induction hardened for strength, while the heat-treated and polished lead screws ensure smooth table movement under load.
• Safety First: CSA-certified with a spindle safety guard, electronic spindle brake, and emergency stop button for operator safety.

SPECIFICATIONS:

• Digital Readout: ACU-RITE 303
• Powerfeed: X & Y-Axis
• Table Size (L x W) (in.): 9 x 49
• Spindle Taper (in. x TPI): R-8
• Quill Diameter (in.): 3-3/8
• Spindle Speeds (RPM): Electronic Variable (60 – 5,000)
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Spindle Travel (in.): 5
• Head Movement (Deg.): 90° R & L, 45° F & B
• Max Distance Spindle to Table (in.): 18-3/4
• Distance Spindle to Column (Max./Min.) (in.): 21-2/5 / 6-1/2
• Collet Capacity (in.): 1/8 – 7/8
• Table Longitudinal/Cross Travel (in.): 36 / 12
• T-Slots (Number/Size/Centers): 3 / 5/8 / 2-1/2
• Work Table Weight Capacity (lbs.): 550
• Travel of Knee/Ram (in.): 16 / 14
• Motor: 3 HP, 230V, 3 Phase
• Amperage Draw @ 230V 3Ph: 18
• Prewired (V.): 230
• Overall Dimensions (L x W x H) (in.): 68 x 63 x 84
• Weight (lbs.): 2,300

HOW TO USE:

1. The Jet 894407 EVS-949 Mill is suitable for various metalworking applications.
2. Consult the user manual for detailed instructions on setup, operation, and maintenance.
3. Generally, the process involves securing your workpiece to the table, positioning the cutting tool using the DRO system, and initiating the milling process with chosen parameters.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis ACURITE 303 (Quill) DRO Servo XY Pwrfd (894407):

• Improved Machining Accuracy: Achieve precise results with high-quality components and a digital readout system.
• Increased Efficiency: Automate repetitive tasks and reduce operator fatigue with servo-driven axes.
• Enhanced Durability: Experience long-lasting performance with robust construction and automatic lubrication.
• Prioritized Safety: Operate with peace of mind thanks to integrated safety features.

FEATURES:

• Hand-scraped ways for smooth operation and oil retention.
• High-precision spindle bearings for minimal runout.
• Automatic lubrication system for extended machine life.
• ACU-RITE 303 DRO for precise positioning.
• Servo X and Y-axis power feeds for automated movement.
• Electronic variable speed control for versatility.
• Rigid Meehanite castings for minimal deflection.
• Spindle safety guard and electronic spindle brake for operator safety.
• Heat-treated and polished lead screws for smooth table movement.
• Double nut design for minimal table backlash.
• Vari-disc key for increased wear resistance.
• Balanced variable speed pulleys for reduced vibration.
• Ball bearing motor shaft support for quiet operation.
• Hardened and ground table for workpiece stability.
• Stainless steel Y-axis way cover for added protection.
