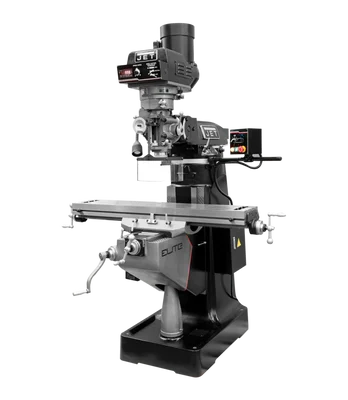

Jet EVS-949 Mill With 2-Axis ACU-RITE 303 DRO XYZ Powerfeed (894336)

Description

Jet EVS-949 Mill With 2-Axis ACU-RITE 303 DRO XYZ Powerfeed (894336) is a high-performance vertical milling machine designed for machinists who demand precision and efficiency. This feature-packed mill boasts an industry-leading spindle runout of 0.00012″ and hand-scraped ways for smooth operation. The X, Y, and Z-axis power feeds and USA-made power drawbar ensure effortless material handling and tool changes.

KEY FEATURES AND BENEFITS:

• Unmatched Accuracy:
  • Achieve strict tolerances with a rigid Meehanite casting base, hand-scraped ways, and Class 7210 precision bearings.
• Effortless Efficiency:
  • Power feeds on all axes (X, Y, and Z) automate repetitive movements, while the USA-made power drawbar simplifies tool changes.
• Enhanced Control:
  • The 2-axis ACU-RITE 303 DRO (Digital ReadOut) provides real-time position data for precise machining.
• Durable Performance:
  • The fully hardened Chromium Molybdenum spindle and automatic lubrication system ensure long-lasting operation.
• Operator Safety:
  • The electronic spindle brake prevents accidental startups, while CSA/CUS certifications guarantee adherence to safety standards.

SPECIFICATIONS:

• Digital ReadOut (DRO): ACU-RITE 303
• Powerfeeds: X, Y, and Z-axis
• Power Draw Bar: USA-made
• Table size: 9″ x 49″
• Spindle taper: R-8
• Spindle speeds: Variable (60 – 5,000 RPM)
• Motor: 3 HP, 230V, 3-phase
• Weight: 2,300 lbs

HOW TO USE:

To ensure optimal operation of the Jet EVS-949 Mill With 2-Axis ACU-RITE 303 DRO XYZ Powerfeed (894336), follow these steps:

1. Installation: Following the manufacturer’s instructions, securely mount the mill on a stable and level surface. Ensure proper electrical connection (230V, 3-phase required).
2. Workpiece Setup: Clamp your workpiece securely to the mill table using appropriate vises or clamps.
3. Tool Selection: Select the appropriate cutting tool (mill bit, end mill, etc.) for your desired operation and install it into the spindle using the power drawbar.
4. Positioning: Utilize the handwheels and the DRO display to precisely position the cutting tool and workpiece for machining.
5. Operation: Engage the power feeds and adjust the cutting parameters (speed and feed rate) based on the material and desired outcome.
6. Machining: Initiate the machining process by lowering the spindle and engaging the cutting tool with the workpiece. Monitor the process and adjust parameters as needed.
7. Safety: Always wear appropriate safety gear (eye protection, gloves, etc.) while operating the mill. Utilize the emergency stop button if necessary.

BENEFITS OF USING Jet EVS-949 Mill With 2-Axis ACU-RITE 303 DRO XYZ Powerfeed (894336):

• Achieve superior machining accuracy and precision.
• Increase productivity with automated power feeds and tool changes.
• Simplify operation with a user-friendly digital readout.
• Experience smooth and reliable performance with a robust design.
• Ensure operator safety with built-in safety features.

FEATURES:

• Hand-scraped ways for smooth movement and oil retention
• Class 7210 precision bearings for minimal spindle runout
• Fully hardened Chromium Molybdenum spindle
• Vari-disc key for extended wear resistance
• Automatic lubrication system for machine longevity
• Electronic spindle brake for safety
• Stainless steel way cover for better protection
• Certified for operator safety (CSA/CUS)
• 3 HP motor for powerful machining
