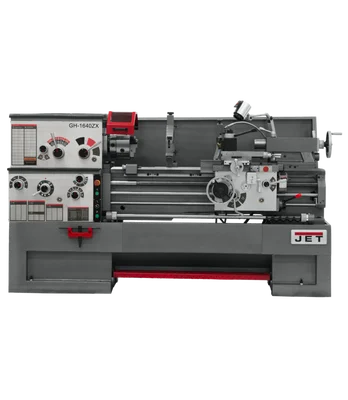

Jet GH-1640ZX 16×40″ Head Metal Lathe w/Taper Attachment (321474)

Description

The Jet GH-1640ZX 16×40″ Metal Lathe w/Taper Attachment (321474) is a high-performance machine designed for professional machine shops, delivering exceptional power and precision. Featuring a 7.5 horsepower motor and a 16-inch swing over bed capacity, this lathe is capable of handling a wide range of metalworking projects with ease.

KEY FEATURES AND BENEFITS:

• Powerful Motor: Equipped with a 7.5 horsepower motor for robust performance.
• Large Swing Capacity: Offers a 16-inch swing over bed, accommodating various project sizes.
• Versatile Spindle: Features a 3-1/8 inch bore spindle supported by tapered and ball bearings, ensuring rigidity and precision.
• Universal Gearbox: Eliminates the need for manual gear changes, simplifying thread cutting and feed rate adjustments.
• Thread Cutting Capabilities: Cuts both inch and metric threads, enhancing versatility for different projects.
• One-Shot Lubrication System: Facilitates easy maintenance with a centralized lubrication system.
• T-Slotted Compound Slide: Features a four-way tool post for exceptional control and flexibility in machining operations.
• Stable Construction: The one-piece cast iron base minimizes vibration, ensuring accuracy during heavy cuts.
• Removable Gap Bed: Allows for machining larger diameter workpieces by adjusting the bed configuration.
• Automatic Carriage Stop: Enhances productivity with a five-position stop for quick setup of repetitive machining positions.

SPECIFICATIONS:

• Swing Over Bed: 16 inches
• Distance Between Centers: 40 inches
• Spindle Bore: 3-1/8 inches
• Number of Spindle Speeds: 12
• Spindle Speed Range: 25 to 1,800 RPM
• Motor: 7.5 HP, 3-Phase, 230/460V
• Dimensions (L x W x H): 92.5″ x 40″ x 48.9″
• Weight: 4,320 lbs.

HOW TO USE:

• Setup: Place the lathe on a stable surface and secure it using mounting pads and levelers.
• Load Workpiece: Insert the workpiece into the chuck or on the faceplate, ensuring it is securely held.
• Adjust Settings: Select the appropriate spindle speed and threading options using the universal gearbox.
• Begin Machining: Start the lathe and use the controls to position the tool for cutting operations.
• Use Accessories: Utilize accessories like the steady rest, follow rest, and coolant system as needed for specific tasks.
• Maintenance: Regularly lubricate the machine using the one-shot lubrication system and keep the work area clean for optimal performance.

BENEFITS OF USING THE JET GH-1640ZX 16X40″ LATHE W/TAPER ATTACHMENT (321474):

• Precision Machining: High-quality construction and features ensure precise results for professional machine shops.
• Versatile Applications: Suitable for turning, threading, and other machining operations on various metalwork materials.
• Efficient Operation: Simplified setup and operation with the universal gearbox and ergonomic design.
• Durable Construction: Built to withstand heavy-duty use with a stable cast iron base and hardened components.
• Comprehensive Accessories: Includes a wide range of accessories for enhanced functionality and operational convenience.

FEATURES:

• 7.5 HP Motor: Provides ample power for demanding metalworking tasks.
• 16-Inch Swing Capacity: Accommodates a variety of workpiece sizes.
• Stable Spindle: Supported by tapered and ball bearings for rigidity and precision.
• Universal Gearbox: Enables seamless thread cutting without gear changes.
• One-Shot Lubrication: Simplifies maintenance with centralized lubrication.
• T-Slotted Compound Slide: Offers flexibility with a four-way tool post for precise tool positioning.
• One-Piece Cast Iron Base: Minimizes vibration for accurate cuts.
• Removable Gap Bed: Increases versatility for machining larger diameter workpieces.
• Automatic Carriage Stop: Streamlines workflow with quick setup for repetitive tasks.
