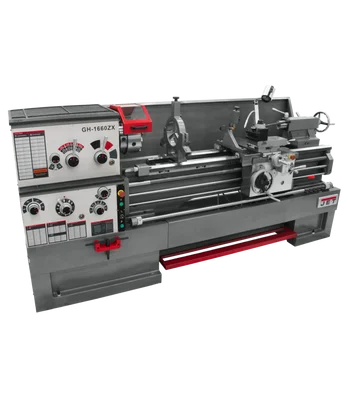

Jet GH-1660ZX Lathe w/ACU-RITE 303 DRO & Taper Attachment (321389)

Description

The Jet GH-1660ZX Lathe w/ACU-RITE 303 DRO & Taper Attachment (321389) is a heavy-duty machine built for professional machinists and workshops. This lathe boasts a large 16″ swing capacity over the bed, allowing you to tackle large diameter projects. The powerful 7-1/2 horsepower, 3-phase electric motor delivers ample torque for even the most challenging cuts.

KEY FEATURES AND BENEFITS:

• The innovative Universal Gearbox eliminates the need for manual gear changes, streamlining thread cutting and feed rate adjustments.
• Both inch and metric threading capabilities for maximum versatility.
• ACU-RITE 303 DRO (Digital ReadOut) ensures precise machining by displaying the position of the cutting tool in real-time.
• Taper Attachment allows for the use of Morse taper tooling, expanding your machining options.

SPECIFICATIONS:

• Capacity: 16″ swing over bed
• Motor: 7-1/2 horsepower, 3-phase electric motor
• Threading: Inch and metric capabilities
• Additional Features: ACU-RITE 303 DRO, taper attachment for Morse taper tooling

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1660ZX Lathe:

1. Power on the lathe and ensure all safety precautions are in place.
2. Select the appropriate speed and feed rate using the Universal Gearbox.
3. Position and secure the workpiece using the included chucks or face plate.
4. Engage the cutting tool and monitor its position on the ACU-RITE 303 DRO.
5. Use the taper attachment if necessary for Morse taper tooling.
6. After use, perform maintenance as per the user manual.

BENEFITS OF USING Jet GH-1660ZX Lathe w/ACU-RITE 303 DRO & Taper Attachment (321389):

• Powerful 7-1/2 HP motor for tackling challenging cuts.
• Precision with ACU-RITE 303 DRO and Universal Gearbox.
• Versatility with inch and metric threading and taper attachment.
• Durable construction with one-piece cast iron base and ANSI Class 50 bed ways.

FEATURES:

• Large 16″ swing capacity over bed.
• One-piece cast iron base for vibration absorption.
• High-quality ANSI Class 50 wear-resistant cast iron bed ways.
• Centrally located controls with jog button for intuitive operation.
• Easy-to-use foot brake for quick machine stops.
• Articulating LED work lamp for excellent illumination.
• Includes a tool box and adjusting tools for organized maintenance.
