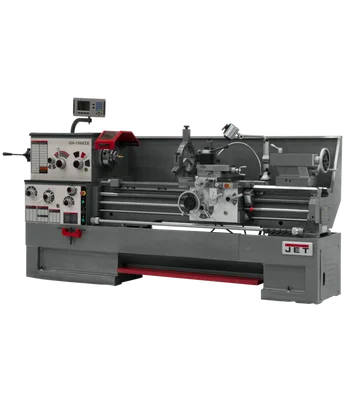

Jet GH-1660ZX Lathe w/NEWALL C80 DRO & Collet Closer (321527)

Description

The Jet GH-1660ZX Lathe w/NEWALL C80 DRO & Collet Closer (321527) is a versatile and high-performance machine built for demanding metalworking applications. Its 7.5 horsepower, 3-phase motor delivers ample power for various machining operations. The large 3-1/8″ spindle bore accommodates large diameter workpieces, while the 16″ swing over bed allows you to tackle a wide range of projects.

KEY FEATURES AND BENEFITS:

• Universal Gearbox: Eliminates manual gear changes, allowing threading in inch, metric, diametral, and module pitches with ease.
• Removable Gap: Gap bed design increases versatility to work on pieces up to 23-5/8″ in diameter on a 16″ swing lathe.
• Precision and Durability: One-piece cast iron base absorbs vibration for clean cuts. ANSI Class 50 wear-resistant cast iron bed ways are precision ground for long-lasting accuracy.
• Convenience and Efficiency: Equipped with NEWALL C80 DRO for precise positioning and measurement. One-shot lubrication system simplifies maintenance. Five-position automatic carriage stop enhances productivity.

SPECIFICATIONS:

• Capacity: 16″ swing over bed, up to 23-5/8″ with removable gap
• Spindle Bore: 3-1/8″
• Motor: 7.5 horsepower, 3-phase electric motor
• Threading Capabilities: Inch, metric, diametral, module pitches
• Additional Features: NEWALL C80 DRO, collet closer

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH-1660ZX Lathe:

1. Ensure proper setup and safety precautions are in place.
2. Select appropriate spindle speed and feed rate using the universal gearbox.
3. Secure workpiece using provided chucks or face plate.
4. Utilize NEWALL C80 DRO for precise positioning of cutting tools.
5. Utilize collet closer for precise machining of small diameter workpieces.
6. Perform regular maintenance including lubrication and cleaning as per manual.

BENEFITS OF USING Jet GH-1660ZX Lathe w/NEWALL C80 DRO & Collet Closer (321527):

• Versatile and high-performance machine ideal for demanding metalworking applications.
• Precise positioning and measurement with NEWALL C80 DRO.
• Convenient features like universal gearbox and one-shot lubrication system.
• Durable construction with one-piece cast iron base and ANSI Class 50 bed ways.

FEATURES:

• Large 3-1/8″ spindle bore for handling large diameter workpieces.
• Universal gearbox for seamless threading adjustments.
• NEWALL C80 DRO for precise measurement and positioning.
• Collet closer for precise machining of small diameter workpieces.
• One-piece cast iron base for vibration absorption.
• Powerful 7.5 HP motor for various machining operations.
• Extensive accessories included for immediate use.
