Description

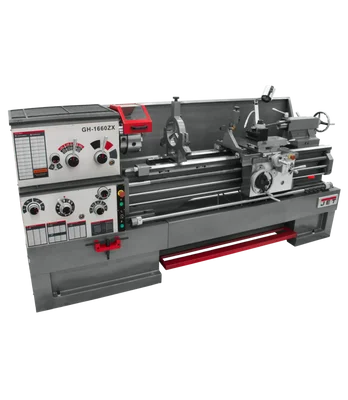

The Jet GH-1660ZX Lathe With ACU-RITE 203 DRO (321455) is a robust and precise metalworking machine designed for efficient and accurate operations. Equipped with an ACU-RITE 203DRO digital readout, this lathe offers exceptional control and precision.
KEY FEATURES AND BENEFITS:
- Powerful Performance: A 7.5 HP, 3-phase motor delivers ample power for various metalworking tasks.
- Precision Control: The ACU-RITE 203DRO digital readout ensures accurate measurements and precise cuts.
- Versatility: The universal gearbox eliminates the need for gear changes, allowing for efficient thread cutting.
- Durability: Heavy-duty construction and cast iron base provide stability and longevity.
- Safety: Equipped with essential safety features like an e-stop, splash guard, and coolant system.
SPECIFICATIONS:
- Swing Over Bed: 16 inches
- Distance Between Centers: 60 inches
- Spindle Bore: 3-1/8 inches
- Spindle Speeds: 25-1800 RPM
- Threading Capacities: Inch and metric
- Feed Rates: Longitudinal and cross
- Motor: 7.5 HP, 3-phase
- Digital Readout: ACU-RITE 203DRO
- Dimensions: 115 x 44 x 66 inches
HOW TO USE:
- Setting Up:
- Ensure the lathe is placed on a stable, level surface.
- Connect the lathe to a power supply and ground it properly.
- Install the chuck, face plate, and other necessary accessories.
- Check and adjust the coolant system.
- Basic Operation:
- Secure the workpiece between the chuck and tailstock.
- Set the desired spindle speed and feed rate.
- Engage the power feed for automatic cutting.
- Monitor the cutting process and make adjustments as needed.
- Use the ACU-RITE 203DRO for precise measurements and control.
- Apply coolant to the cutting tool for optimal performance.
- Safety Precautions:
- Always wear safety goggles and protective clothing.
- Use proper workholding methods to prevent accidents.
- Never reach into the rotating workpiece.
- Follow the operator’s manual for detailed safety instructions.
BENEFITS OF USING JET GH-1660ZX LATHE WITH ACU-RITE 203 DRO (321455):
- Increased Productivity: Powerful motor and efficient features for faster job completion.
- Enhanced Accuracy and Precision: ACU-RITE 203DRO ensures precise measurements and cuts.
- Versatility: Handles various metalworking projects.
- Durability: Built for long-term use with reliable performance.
- Improved Safety: Equipped with built-in safety features for secure operation.
FEATURES:
- 3-1/8 inch bore spindle
- Chrome molybdenum headstock gears
- Universal gearbox
- One-piece cast iron base
- T-slotted compound slide
- Five-position automatic carriage stop
- Meehanite castings
- Siemens electrics
- 10 inch 3-jaw scroll chuck
- 12 inch face plate
