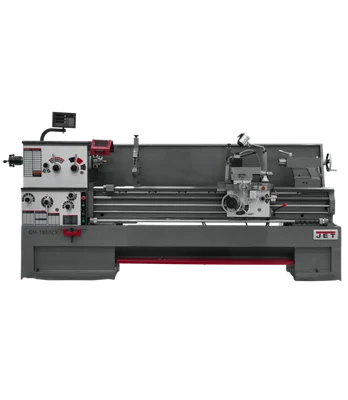

Jet GH-1880ZX Lathe w/Newall DP700 with Taper & Collet Closer (321578)

Description

The Jet GH-1880ZX Lathe w/Newall DP700 with Taper & Collet Closer (321578), part of the ZX-Series, is a heavy-duty geared head metal lathe built for precision and power. This lathe boasts a robust 7-1/2 HP, 3-phase, 230/460V motor to handle demanding metalworking projects. The large 3-1/8″ bore spindle is supported by bearings for stability during heavy cuts.

KEY FEATURES AND BENEFITS:

• Powerful 7-1/2 HP motor: Handles demanding projects effectively.
• Large 3-1/8″ bore spindle with bearings: Provides stability and precision.
• Universal gearbox: Eliminates need for gear changes for various threads (inch, metric, diametral, and module pitch).
• T-slotted compound slide: Offers versatility for multiple machining operations.
• Removable gap: Allows working on large diameter objects.
• Fully integrated coolant system: Enhances tool life and chip control.
• Digital readout (Newall DP700): Provides precise measurements.
• Taper attachment and collet closer: Adds versatility for specialized operations.
• Two-year JET warranty: Provides peace of mind.

SPECIFICATIONS:

• Size: 18″ x 80″
• Swing over bed: 18″
• Swing over cross slide: 11″
• Spindle bore: 3-1/8″
• Motor: 7-1/2 HP, 3-phase
• Distance between centers: 80″
• Number of spindle speeds: 12
• Range of spindle speeds: 25 – 1,800 RPM
• Weight: 6,590 lbs

HOW TO USE:

• Step 1: Ensure the lathe is securely placed on a stable surface.
• Step 2: Connect the lathe to a suitable 230/460V, 3-phase electrical supply.
• Step 3: Install and secure the chuck or collet closer appropriate for your workpiece.
• Step 4: Utilize the universal gearbox to set the desired threading option.
• Step 5: Use the Newall DP700 digital readout for precise positioning and measurement.
• Step 6: Employ the taper attachment for tapered hole operations.
• Step 7: Maintain the machine using the integrated coolant system for optimal performance.

BENEFITS OF USING JET GH-1880ZX LATHE WITH NEWALL DP700 WITH TAPER & COLLET CLOSER:

• Power and Precision: Robust motor and large spindle bore ensure efficient machining.
• Versatility: Universal gearbox, taper attachment, and collet closer enable a wide range of operations.
• Efficiency: Integrated features like the coolant system and digital readout enhance productivity.
• Durability: Solid construction and JET warranty provide reliability and longevity.

FEATURES:

• Handles demanding projects effectively.
• Provides stability and precision.
• Eliminates need for gear changes for various threads.
• Offers versatility for multiple machining operations.
• Allows working on large diameter objects.
• Enhances tool life and chip control.
• Provides precise measurements.
• Adds versatility for specialized operations.
• Provides peace of mind.
