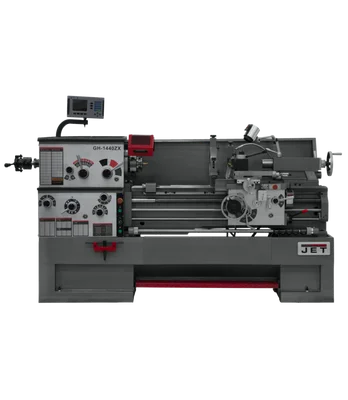

Jet GH1440ZX Lathe w/ACU-RITE 200S DRO & Collet Closer (321501)

Description

The Jet GH1440ZX Lathe w/ACU-RITE 200S DRO & Collet Closer (321501) is an industrial-grade lathe boasting a robust one-piece cast iron base that absorbs vibration for exceptional accuracy during heavy cuts. The large 3-1/8″ bore spindle, supported by two tapered roller bearings and one ball bearing, ensures smooth operation and handles even the most demanding projects.

KEY FEATURES AND BENEFITS:

• Effortless Threading & Gear Changes: The innovative universal gearbox eliminates the need for manual gear changes, allowing inch, metric, diametral, and module pitch threads with ease.
• Enhanced Efficiency & Convenience: Carriage with one-shot lubrication system for easy maintenance. Turcite-B on bed sliding surfaces minimizes friction and wear. T-slotted compound slide with four-way tool post for maximum flexibility.
• Built for Heavy-Duty Applications: High-quality ANSI Class 50 wear-resistant cast iron bed ways, hardened and ground for precision and durability. Removable gap accommodates large diameter workpieces up to 23-5/8″.
• Unmatched Productivity & User Experience: Five-position automatic carriage stop for streamlined tasks. Ergonomic control panel with chrome levers, dials, and knobs. Integrated coolant system and full-length splash guard maintain a clean work environment.

SPECIFICATIONS:

• Swing: 14″ swing over bed
• Distance Between Centers: 40″
• Spindle Bore: 3-1/8″
• Motor: 7.5 horsepower, 3-phase electric motor
• Threading Capabilities: Inch, metric, diametral, module pitch threads
• Additional Features: ACU-RITE 200S DRO, collet closer

HOW TO USE:

Follow these steps for a simple guide on how to use the Jet GH1440ZX Lathe:

1. Ensure proper setup and safety precautions are in place.
2. Use the universal gearbox to select the appropriate threading mode.
3. Secure the workpiece using the provided chucks or face plate.
4. Perform regular maintenance with the one-shot lubrication system.
5. Utilize the T-slotted compound slide and four-way tool post for versatile machining.
6. Take advantage of the removable gap for turning large diameter workpieces.

BENEFITS OF USING Jet GH1440ZX Lathe w/ACU-RITE 200S DRO & Collet Closer (321501):

• Industrial-grade construction with robust one-piece cast iron base.
• Efficient universal gearbox for easy threading changes.
• Enhanced productivity with features like automatic carriage stop and integrated coolant system.
• Extensive standard equipment included for immediate use.

FEATURES:

• Robust one-piece cast iron base for vibration absorption.
• Large 3-1/8″ bore spindle supported by tapered roller bearings and ball bearing.
• High-quality ANSI Class 50 wear-resistant cast iron bed ways, hardened and ground.
• Comprehensive standard equipment including chucks, tool posts, steady rest, and coolant system.
• Ergonomic control panel with chrome levers, dials, and knobs for intuitive operation.
