Description

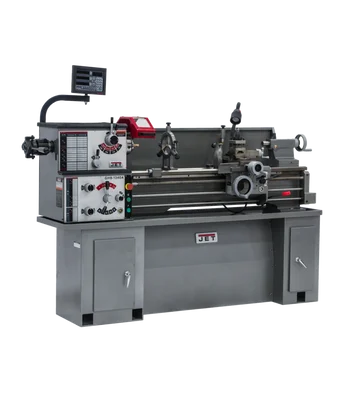

Jet GHB-1340A Lathe Machine with C80 DRO and Collet Closer (321581) is a versatile metalworking lathe ideal for machinists, hobbyists, and professional workshops. This powerful lathe boasts an enclosed gearbox for smooth operation, a D1-4 spindle with precision bearings for accuracy, and a wide range of threading and feed capabilities.
KEY FEATURES AND BENEFITS:
- Enhanced Precision & Control: Enclosed gearbox minimizes noise and ensures smooth operation. Hardened and ground gears, constant headstock oiling, and independent leadscrew and feed rod contribute to exceptional machining accuracy.
- Versatility for Various Projects: The 13-inch swing capacity and gap bed section allow handling of both standard and larger diameter workpieces. Variable speeds (70-2000 RPM) and 40 feed rates offer flexibility for tackling diverse projects.
- User-Friendly Design: The C80 DRO (Digital ReadOut) simplifies measurement and positioning for improved efficiency. Backlash elimination on compound and cross slides further enhances machining accuracy.
- Durability & Long-lasting Performance: The induction hardened and ground V-way bed ensures a stable platform for precise machining. Adjustable gibs enable fine-tuning of slideway fit for long-term precision.
SPECIFICATIONS:
- Swing over Bed: 13 inches
- Swing over Cross Slide: 7-25/32 inches
- Swing Through Gap: 18-3/4 inches
- Distance Between Centers: 40 inches
- Spindle Bore: 1-3/8 inches
- Spindle Mount: D1-4
- Spindle Taper W/ Sleeve: MT-5 (MT-3)
- Number of Spindle speeds: 8
- Range of Spindle Speeds (RPM): 70 – 2,000
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds (IPR): 0.0036 – 0.0325
- Range of Cross Feeds (IPR): 0.0012 – 0.0345
- Motor: 2 HP, 230V, 1Ph
- Dimensions (Height x Width x Length): 47″ x 32″ x 71″
- Weight: Not specified
HOW TO USE:
- Preparation: Secure the workpiece in the chuck or between centers. Ensure proper eye protection and appropriate clothing are worn.
- Speed and Feed Selection: Choose the appropriate spindle speed and feed rate based on the material and desired cutting depth. Refer to the lathe manual for recommendations.
- Machining: Engage the spindle and start the cutting process. Use the carriage handles to control the movement of the cutting tool along the workpiece axis. The DRO system provides real-time position feedback for precise control.
- Monitoring and Adjustments: Continuously monitor the cutting process and adjust the feed rate or depth of cut as needed to maintain optimal performance.
- Finishing: Once machining is complete, disengage the spindle and stop the lathe. Carefully remove the workpiece and inspect it for accuracy.
BENEFITS OF USING Jet GHB-1340A Lathe Machine with C80 DRO and Collet Closer (321581):
- Accurate and Versatile Machining: Delivers precise results for a wide range of metalworking projects.
- Smooth and Quiet Operation: Enclosed gearbox minimizes noise for a more pleasant work environment.
- User-Friendly Features: C80 DRO and backlash elimination enhance efficiency and accuracy.
- Durable Construction: Built to withstand demanding applications and ensure long-lasting performance.
FEATURES:
- Enclosed gearbox for quiet operation
- D1-4 spindle with high-quality bearings for precision
- Constant headstock oiling
- Wide threading and feed capabilities without gear changes
- Induction hardened and ground bed for durability
- Gap bed section for larger diameter work
- Independent leadscrew and feed rod for precise control
- Backlash elimination on compound and cross slides
- Adjustable gibs for fine-tuning
- Tailstock with offset capability for turning tapers
