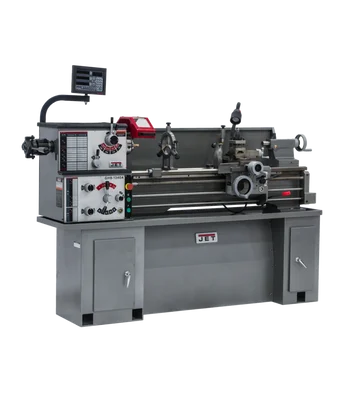

Jet GHB-1340A Lathe w/ Newall DP500 DRO With Taper Attachment (323115)

Description

Jet GHB-1340A Lathe w/ Newall DP500 DRO With Taper Attachment (323115) is a versatile benchtop lathe designed for mid-size turning projects. This geared head lathe features an enclosed gearbox for smooth, quiet operation, and precision roller bearings that support the hardened and ground spindle for tight tolerances.

KEY FEATURES AND BENEFITS:

• Accurate and Quiet: Enclosed gearbox minimizes noise and ensures smooth operation. Precision roller bearings and hardened ground spindle deliver high accuracy.
• Digital Readout (DRO): The Newall DP500 DRO provides precise positioning for improved control and repeatability.
• Taper Turning: The included taper attachment allows you to turn tapered workpieces with ease.
• Versatile Capabilities: With 8 spindle speeds, 40 feed rates, and a wide range of threading capabilities, this lathe tackles various metalworking projects.
• Durable Construction: The cast iron bed is induction hardened and ground for long-lasting performance.
• Powerful Motor: The 2 HP motor provides ample power for most mid-size turning applications.

SPECIFICATIONS:

• Size: 13″ x 40″
• Digital Readout: Newall DP500
• Spindle Speeds: 8 (70 – 2,000 RPM)
• Swing Over Bed: 13″
• Distance Between Centers: 40″
• Spindle Bore: 1-3/8″
• Motor: 2 HP, 230V, 1 Phase
• Weight: 1,154 lbs

HOW TO USE:

1. Set up the lathe: Secure the lathe to a sturdy workbench and connect it to the appropriate power source. Install the desired chuck or faceplate onto the spindle.
2. Mount your workpiece: Depending on the project, secure the workpiece between the centers or in the chuck.
3. Select the appropriate speed and feed rate: Refer to the manual or a machining chart to determine the ideal settings for your material and desired cut.
4. Engage the spindle and start cutting: Use the controls on the headstock to engage the spindle and start the lathe.
5. Move the cutting tool: Use the carriage handwheels to move the cutting tool along the X and Z axes to create the desired shape on the workpiece.
6. Stop the lathe and dismount the workpiece: Once complete, turn off the lathe and allow it to come to a complete stop before dismounting the workpiece.

BENEFITS OF USING Jet GHB-1340A Lathe w/ Newall DP500 DRO With Taper Attachment (323115):

• Precision machining: Achieve accurate results with the high-quality spindle, bearings, and DRO system.
• Versatility: Tackle a wide range of turning projects with various speeds, feeds, threading capabilities, and taper turning attachment.
• Durability: The robust construction ensures long-lasting performance in your workshop.
• User-friendly operation: The enclosed controls and clear markings make it easy to operate the lathe.

FEATURES:

• Enclosed gearbox for quiet operation
• Precision roller bearings for spindle support
• Hardened and ground spindle for tight tolerances
• Newall DP500 Digital ReadOut (DRO)
• Taper attachment for turning tapered pieces
• 8 spindle speeds for various materials
• 40 feed rates for precise control
• Cuts inch and metric threads
• 2 HP motor for powerful performance
• Cast iron bed for stability
• D1-4 spindle mount
• MT-5 (MT-3) spindle taper with sleeve
• Includes 3-jaw chuck, 4-jaw chuck, face plate, steady rest, follow rest, four-way tool post, metric change gears, splash guard, centers, threading dial, and tool box with tools.
