Jet HBS-916EVS 1.5HP 9×16″ EVS Hori Bandsaw CSA Approved (424469)

Description

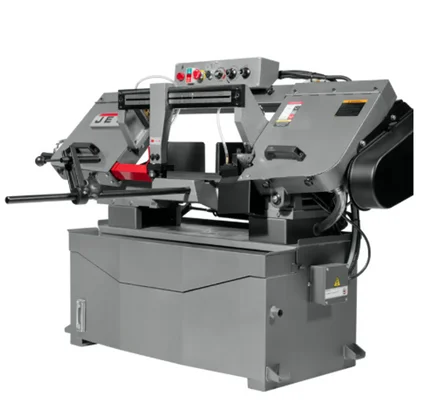

The Jet HBS-916EVS 1.5HP 9×16″ EVS Hori Bandsaw CSA Approved (424469) is a precision cutting tool designed for efficient metalworking. This machine features electronic variable speed control for optimal cutting performance on various materials.

KEY FEATURES AND BENEFITS:

• Precise Cuts: Electronic variable speed ensures accurate cutting speed for different materials.
• Efficient Operation: Oversized chip tray minimizes cleanup time.
• Comfortable Use: Large handwheel and built-in gauge for easy blade tensioning.
• Versatile Cutting: Quick-positioning vise with 45�� swivel for various workpiece angles.
• Durable Construction: Built to last with sturdy frame and high-quality components.

SPECIFICATIONS:

• Model: HBS-916EVS
• Motor: 1-1/2 HP, 115V, Single Phase
• Blade Size: 119-1/2 inches
• Cutting Capacity: 9″ x 16″
• Blade Speed: 82-330 SFPM (Electronic Variable Speed)
• Net Weight: 726 lbs
• Dimensions: 67″ x 25″ x 46-1/4″

HOW TO USE:

• Set Up: Ensure the bandsaw is placed on a stable, level surface. Connect to a power source.
• Blade Installation: Follow the manufacturer’s instructions for proper blade installation and tensioning.
• Material Clamping: Secure the workpiece in the vise, adjusting the angle as needed.
• Speed Adjustment: Select the appropriate cutting speed based on the material being cut.
• Cutting: Lower the blade into the workpiece and feed the material slowly and steadily.
• Coolant Application: Use coolant as recommended for the material being cut.
• Chip Removal: Regularly clear the chip tray to prevent buildup.

BENEFITS OF USING Jet HBS-916EVS 1.5HP 9×16″ EVS Hori Bandsaw CSA Approved (424469):

• Improved cutting accuracy and efficiency
• Increased productivity due to faster setup and operation
• Enhanced safety with features like blade guides and emergency stop
• Longer blade life through proper cooling and tensioning
• Versatile cutting capabilities for various metalworking projects

FEATURES:

• Electronic variable speed
• Oversized removable chip tray
• Large handwheel and built-in gauge
• Blade guides
• Quick-positioning vise with 45�� swivel
• Adjustable material stop
• Built-in, self-propelled blade brush
• Carbide blade guides with parallel double-row ball bearing support
• Coolant distributed through blade guides
• Fully adjustable hydraulic downfeed
• Standard coolant system
