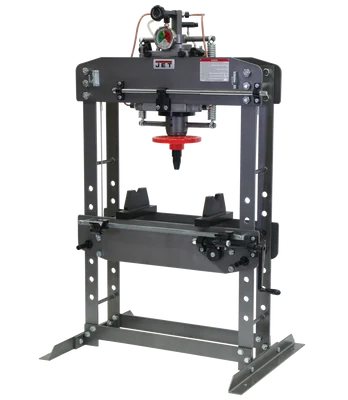

Jet HP-35A Model 35-Ton Hydraulic Press (331431)

Description

The Jet HP-35A Model 35-Ton Hydraulic Press (331431) is a versatile tool designed for pressing, bending, and straightening applications. With a 35-ton capacity, this press is built to handle demanding tasks with ease.

KEY FEATURES AND BENEFITS:

• Powerful and Efficient: 35-ton capacity handles heavy-duty tasks.
• Versatile: Lateral movement and adjustable table for various applications.
• Easy to Use: Hand-operated with a pressure gauge for precise control.
• Durable: Constructed from heavy-duty steel for long-lasting performance.
• Safe: Open side frames for easy material insertion.

SPECIFICATIONS:

• Capacity: 35 tons
• Ram Diameter: 3 inches
• Piston Stroke: 4-3/4 inches
• Screw Stroke: 4 inches
• Work Table Size: 31 x 10-3/8 inches
• Lateral Movement: 15 inches
• Vertical Table Travel: 23-5/8 inches
• Overall Dimensions: 42-1/2 x 33-1/2 x 68-1/8 inches
• Weight: 783 pounds

HOW TO USE:

1. Set Up: Place the hydraulic press on a stable and level surface. Ensure there is enough clearance around the press for operation.
2. Adjust Table Height: Use the hand crank to raise or lower the work table to the desired height for your project.
3. Position Material: Place the material to be pressed or bent between the ram and the work table. Ensure proper alignment and support.
4. Operate Press: Slowly pump the hydraulic handle to apply pressure. Monitor the pressure gauge to control the force exerted.
5. Release Pressure: Once the desired pressure is reached, slowly release the hydraulic handle to lower the ram.

BENEFITS OF USING Jet HP-35A Model 35-Ton Hydraulic Press (331431):

• Increased Efficiency: Quickly and accurately perform pressing, bending, and straightening tasks.
• Improved Productivity: Handle a wide range of projects with a single tool.
• Enhanced Safety: Open side frames allow for safe material handling.
• Accurate Results: Pressure gauge provides precise control over applied force.
• Durable Construction: Built to last for years of reliable performance.

FEATURES:

• Powerful 35-Ton Capacity: Handles heavy-duty tasks with ease.
• Easy-to-Read Pressure Gauge: For precise control.
• Adjustable Work Table: Provides flexibility for different applications.
• Lateral Movement for Versatility: Allows handling of various workpiece sizes.
• Open Side Frames: Accommodates long materials and ensures easy material handling.
• Hand-Operated: Allows for precise control over the pressing process.
• Durable Steel Construction: Ensures long-lasting performance and reliability.
