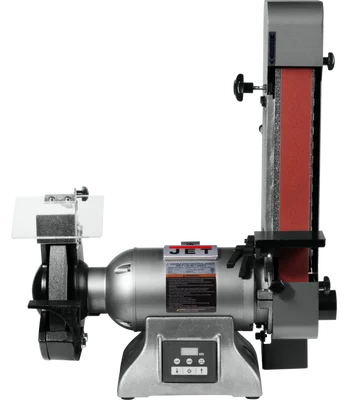

Jet IBGB-248VS 8″ Variable Grinder with 2″x48″ Belt Sander (577248)

Description

Jet IBGB-248VS 8″ Variable Grinder with 2″x48″ Belt Sander (577248) is a versatile and powerful combination tool designed for demanding industrial applications. This machine integrates a heavy-duty 8-inch variable speed grinder with a 2 x 48-inch belt sander, making it ideal for various metalworking, fabrication, and sharpening tasks.

KEY FEATURES AND BENEFITS:

• Industrial Strength Construction: Built to withstand heavy use with sealed bearings and a robust 1 HP enclosed motor.
• Variable Speed: Offers precise control over grinding (up to 3600 RPM) and sanding (1178 – 4712 SFPM) operations.
• Digital Readout: Provides accurate monitoring of RPM and SFPM for optimal performance and results.
• Quick-Stop Motor Brake: Enhances safety by stopping the grinding wheel rapidly (within 20 seconds).
• Versatile Belt Sander: Easily transitions from vertical to horizontal positions for a wide range of sanding applications.
• Enhanced Safety: Features include eye shields, safety guards, a removable key, and OSHA-compliant adjustable shielding.

SPECIFICATIONS:

• Motor: 1 HP, 115/230V, Single Phase
• Grinder Wheel: 8-inch, 36 Grit
• Belt Size: 2″ x 48″
• Belt Speed: 1178 – 4712 SFPM
• Weight: 96 lbs (gross)
• Dimensions:
  • Vertical: 21-1/4″ L x 12-9/32″ W x 25-29/32″ H
  • Horizontal: 21-1/4″ L x 24-3/4″ W x 13-15/16″ H
• Certification: CSA/US certified

HOW TO USE:

1. Preparation: Ensure the machine is securely mounted on a stable workbench. Install the desired grinding wheel or sanding belt according to the provided instructions.
2. Safety First: Always wear appropriate safety gear, including eye protection, dust mask, and ear protection.
3. Grinding: Select the desired speed using the variable speed dial. Approach the workpiece gradually and maintain even pressure.
4. Sanding: Adjust the belt sander to the appropriate position (vertical or horizontal) for your task. Guide the workpiece across the moving belt, applying even pressure.
5. Maintenance: Regularly clean the machine and inspect for wear or damage. Replace worn parts as needed.

BENEFITS OF USING Jet IBGB-248VS 8″ Variable Grinder with 2″x48″ Belt Sander (577248):

• Increased productivity due to the combination of grinding and sanding capabilities in one machine.
• Precise control and optimal results thanks to variable speed and digital readout.
• Enhanced safety with multiple safety features and certifications.
• Durability and longevity for heavy-duty use.

FEATURES:

• Removable platen for versatility
• Belt tensioning handle for easy adjustments
• Wheel dresser for maintaining optimal grinding wheel condition
• Two 2″ round dust ports for dust collection
