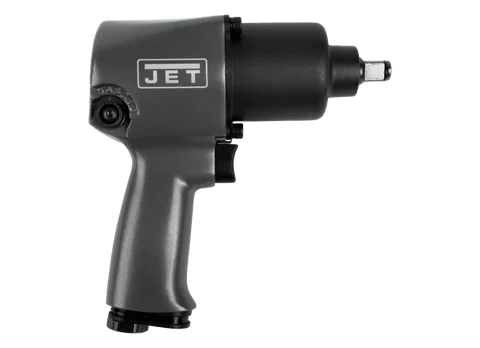

Jet JAT-103 R6 Series 1/2 Inch Impact Wrench (680 ft-lbs) (505103)

Description

The Jet JAT-103 R6 Series 1/2 Inch Impact Wrench (680 ft-lbs) (505103) is a robust 1/2 inch impact wrench designed for efficient and powerful fastening and loosening applications. Part of the R6 series, this tool is built to withstand heavy-duty use while delivering exceptional performance.

KEY FEATURES AND BENEFITS:

• Powerful and Efficient: Equipped with a twin hammer impact mechanism, the JAT-103 generates a maximum torque of 680 ft-lbs, ensuring quick and effortless tightening or loosening of fasteners.
• Durable Construction: The lightweight aluminum housing enhances durability and reduces user fatigue during extended use.
• Precise Control: The adjustable power regulator allows you to match the tool’s power to the specific task at hand, preventing damage to fasteners.

SPECIFICATIONS:

• Drive Size: 1/2 inch
• Max Torque: 680 ft-lbs
• Working Torque: 25-400 ft-lbs
• Free Speed: 8,000 RPM
• Bolt Capacity: 9/16 inch
• Air Consumption: 4.2 CFM
• Air Inlet: 1/4 inch NPT
• Air Hose: 3/8 inch ID
• Air Pressure: 90 PSI
• Vibration Value: 2.8 m/s²
• Noise Level: 100 dB
• Overall Length: 7-1/4 inches

HOW TO USE:

1. Connect the air hose: Attach the air hose to the 1/4 inch NPT air inlet of the impact wrench.
2. Select power setting: Ensure the desired power setting is selected using the adjustable power regulator.
3. Position the socket: Hold the impact wrench firmly and position the socket onto the fastener.
4. Activate the wrench: Pull the trigger to activate the impact wrench. For reverse rotation, switch the direction selector.
5. Finish operation: Once the fastener is tightened or loosened, release the trigger.

BENEFITS OF USING JET JAT-103 R6 SERIES 1/2 INCH IMPACT WRENCH (680 FT-LBS) (505103):

• Increased productivity due to powerful performance
• Reduced user fatigue from lightweight design
• Versatility for various applications with adjustable power
• Durable construction for long-lasting use
• Efficient operation with high torque output

FEATURES:

• Twin hammer impact mechanism
• Lightweight aluminum construction
• Adjustable power regulator
• Reversible switch
