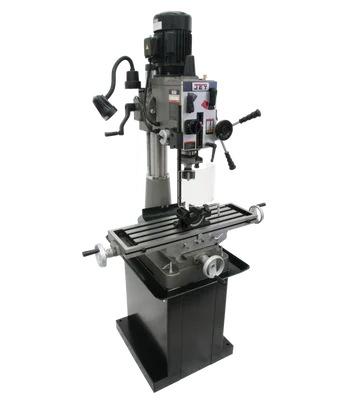

Jet JMD-40GH Geared Head Mill/Drill Newall DP500 2-Axis DRO (351144)

Description

The Jet JMD-40GH Geared Head Mill/Drill Newall DP500 2-Axis DRO (351144) is a precision machine designed for demanding workshop tasks, offering robust capabilities for drilling and milling applications.

KEY FEATURES AND BENEFITS:

• Precision Machining: Delivers accurate results with a Newall DP500 2-axis digital readout (DRO) for precise measurement and control.
• Powerful Performance: Features a 6-speed geared head that delivers full power to cutting tools for efficient material removal.
• Versatility: Equipped with an R8 spindle taper compatible with a wide range of milling tooling, allowing for various machining operations.
• Durable Construction: The heavy-duty round column design ensures stability and precision during operation.
• User-Friendly Controls: Intuitive features like a calibrated fine down feed, easy-to-read depth gauge, and quick-select gear shift levers enhance user experience.
• Tilting Head: The head tilts left and right 90 degrees for angled drilling and milling tasks.
• Milling Table: The integrated milling table allows for precise material movement and workpiece positioning.

SPECIFICATIONS:

• Digital Readout: Newall DP500 2-Axis
• Drilling Capacity (Mild Steel): 1-1/4″
• Face Mill Capacity: 4″
• End Mill Capacity: 3/4″
• Swing: 20-1/2″
• Max Distance Spindle to Table: 15-3/4″
• Spindle Taper: R-8
• Spindle Travel: 5″
• Quill Diameter: 3″
• Column Diameter: 4-1/2″
• Number of Spindle Speeds: 6
• Range of Spindle Speeds (RPM): 65, 130, 220, 480, 925, 1550
• Table Size (L x W): 32-1/4″ x 9-1/2″
• Table Longitudinal Travel: 20-1/2″
• T-Slots Number and Size: 4 & 5/8″ x 1″
• Base Dimensions: 24-1/4″ x 15-15/16″
• Motor: 1-1/2HP, 115/230V, 1-Phase
• Overall Dimensions (L x W x H): 28″ x 39-1/4″ x 42-1/2″
• Weight: 694 lbs.

HOW TO USE:

1. Assembly and Setup: Refer to the user manual for detailed assembly instructions. Secure the mill drill on a stable workbench and ensure proper electrical connection.
2. Workpiece Setup: Secure the workpiece using clamps or a vise on the milling table. Ensure proper alignment with the drill bit or milling tool.
3. Drilling: Select the appropriate drill bit for your material and desired hole size. Set the spindle speed based on the material and drill bit diameter using the gear shift levers. Engage the feed mechanism and drill to the required depth.
4. Milling: Choose the appropriate milling tool for your operation. Set the spindle speed and feed rate based on the material and tool specifications. Utilize the X and Y axes of the milling table to maneuver the workpiece for precise milling cuts.
5. Utilizing the DRO: The Newall DP500 DRO provides digital readouts for the X and Y axes. This allows for highly accurate positioning and measurement of your workpiece during both drilling and milling operations.

BENEFITS OF USING Jet JMD-40GH Geared Head Mill/Drill Newall DP500 2-Axis DRO (351144):

• Enhanced Precision: Achieve accurate results with the digital readout and robust construction.
• Increased Efficiency: The 6-speed geared head and powerful motor ensure efficient material removal.
• Versatility: Tackle a wide range of drilling and milling tasks with the R8 spindle and user-friendly features.
• Durability: The heavy-duty design guarantees long-lasting performance in demanding environments.
• User-Friendly Operation: Intuitive controls and features simplify operation for both experienced and novice users.

FEATURES:

• 6-Speed Geared Head
• Newall DP500 2-Axis Digital Readout (DRO)
