Description

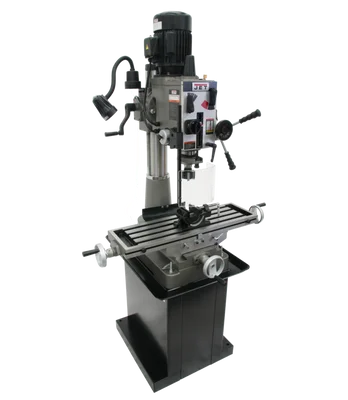

The Jet JMD-40GH Mill/Drill with Newall DP500 2-Axis DRO & X-Pwrfd (351145) is a heavy-duty machine designed for both precision drilling and milling tasks.
KEY FEATURES AND BENEFITS:
- Powerful & Versatile: 1-1/4″ drilling capacity in mild steel & 4″ face milling capacity handle various projects.
- Precise Control: 6-speed geared head delivers optimal power for cutting tools. Newall DP500 2-axis DRO ensures accurate positioning. X-powerfeed automates feed for consistent results.
- User-Friendly Design: Tilting head (90° left/right) increases versatility. Easy-to-read depth gauge & work lamp enhance operation.
- Durable Construction: Rigid round column & heavy-duty design ensure stability during use.
- Wide Tooling Options: R8 spindle allows compatibility with various milling tools (optional mill drill stand required).
SPECIFICATIONS:
- Drilling Capacity: 1-1/4″ mild steel
- Face Mill Capacity: 4″
- End Mill Capacity: 3/4″
- Swing: 21″
- Max Distance Spindle to Table: 15-3/4″
- Spindle Taper: R8
- Spindle Travel: 5″
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65-1550 RPM
- Table Size: 32-1/4″ x 9-1/2″
- Table Longitudinal Travel: 20-1/2″
- Motor: 1-1/2 HP, 115/230V, single-phase
- Weight: 694 lbs.
HOW TO USE:
- Setup: Secure your workpiece using the table clamps and T-slots. Ensure the machine is on a level and stable surface.
- Drilling: Choose the appropriate drill bit for your material and project. Adjust the spindle speed and depth using the controls. Engage the feed handle or powerfeed for drilling.
- Milling (Optional Mill Drill Stand Required): Install the mill drill stand (not included) and milling cutter. Set the spindle speed and depth. Use the table feed handles or powerfeed to move the workpiece against the cutter for material removal.
BENEFITS OF USING Jet JMD-40GH Mill/Drill w/Newall DP500 2-Axis DRO & X-Pwrfd (351145):
- Increased Efficiency: Combines drilling and milling capabilities in one machine, saving time and workspace.
- Enhanced Precision: DRO and powerfeed ensure accurate positioning and consistent results.
- Versatility: Handles a wide range of drilling and milling projects with various materials.
- Durability: Built to last with heavy-duty construction for long-term use.
FEATURES:
- Heavy-duty design for stability
- 6-speed geared head for optimal power delivery
- Newall DP500 2-axis DRO for precise positioning
- X-axis powerfeed for automated feed
- Tilting head (90° left/right) for increased versatility
- Easy-to-read depth gauge for accurate drilling
- Work lamp for improved visibility
- R8 spindle for compatibility with various milling tools (optional mill drill stand required)
- CSA/CUS certified for safety and electrical compliance
