Description

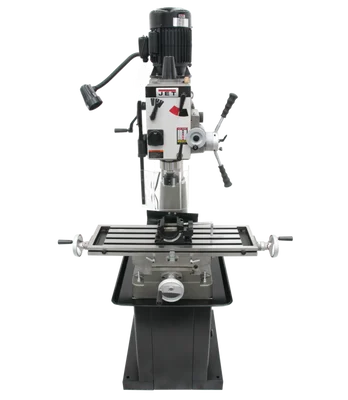

The Jet JMD-40GHPF Mill/Drill Dwnfd Newall DP500 2-Ax DRO X Pwrfd (351147) is a versatile and powerful machine for both drilling and milling applications. Engineered for precision, it boasts a heavy-duty design for tackling demanding tasks.
KEY FEATURES AND BENEFITS:
- Precision Drilling & Milling: Achieve exceptional accuracy with the 6-speed geared head delivering full power to cutting tools, a calibrated fine downfeed system, and a digital readout (DRO) for precise positioning.
- Heavy-Duty Construction: The robust build ensures stability and durability for handling various drilling and milling projects.
- Versatility & Control: The tilting head allows for angular drilling and milling, while the power downfeed provides automated feed control for drilling operations. Quick-select gear levers offer rapid spindle speed changes for optimal tool performance in different materials.
- User-Friendly Design: The built-in work lamp enhances visibility during operation. The easy-to-read internal depth gauge simplifies depth control, and the forward/reverse switch adds to operational flexibility.
- R8 Spindle Taper: Compatible with a wide range of milling tooling for diverse applications.
SPECIFICATIONS:
- Dimensions (L x W x H): 29 in. x 36 in. x 50 in.
- Weight: 655 lbs.
- Motor: 1-1/2 HP
- Number of Spindle Speeds: 6
- Range of Spindle Speeds: 65 – 1,550 RPM
- Spindle Taper: R-8
- Spindle Travel: 5 in.
- Drilling Capacity: 1-1/2 in.
- End Mill Capacity: 3/4 in.
- Face Mill Capacity: 4 in.
- Longitudinal Table Travel (X-axis): 20-1/2 in.
- Swing: 21 in.
- Table Size: 8-1/4 in. x 28-3/4 in.
- Digital Readout: Newall DP500 2-Axis DRO
- Powerfeed: X-Powerfeed
HOW TO USE:
- Setup: Secure your workpiece to the mill/drill table using appropriate clamps. Ensure the machine is level and on a stable surface.
- Power & Speed Selection: Turn on the machine and select the appropriate spindle speed for your material and cutting tool using the gear levers.
- Drilling: Choose the desired drilling depth using the depth gauge and calibrate the fine downfeed system. Engage the power downfeed (if desired) and operate the quill feed handle to drill.
- Milling: Position the cutting tool and workpiece for the desired milling operation. Engage the powerfeed (if using) and adjust the feed rate for optimal chip control. Utilize the X-axis table travel for precise material movement.
- Safety: Always wear safety glasses and appropriate personal protective equipment (PPE) while operating the machine.
BENEFITS OF USING Jet JMD-40GHPF Mill/Drill Dwnfd Newall DP500 2-Ax DRO X Pwrfd (351147):
- Increased Productivity: The powerful motor, versatile features, and automated feed options enable efficient drilling and milling tasks.
- Enhanced Accuracy: The precision design elements like the DRO and fine downfeed system ensure accurate hole placement and material removal.
- Heavy-Duty Performance: The robust construction tackles demanding applications with ease.
- Wide Range of Capabilities: Handle drilling and milling tasks on various materials with this versatile machine.
- User-Friendly Operation: The intuitive controls, work lamp, and easy-to-read depth gauge contribute to a user-friendly experience.
FEATURES:
- 6-speed geared head for optimal power delivery
- Power downfeed for automated feed control during drilling
- Newall DP500 2-Axis Digital Readout (DRO) for precise positioning
- Heavy-duty design for stability and durability
- Tilting head for angular drilling and milling
- Quick-select gear shift levers for rapid spindle speed changes
- Forward/reverse switch for operational flexibility
- Built-in work lamp for enhanced visibility
- Calibrated fine downfeed system for accurate depth control
- Easy-to-read internal depth gauge
- R8 spindle taper compatible with a wide range of tooling
- Spacious table with T-slots for workpiece clamping
