Description

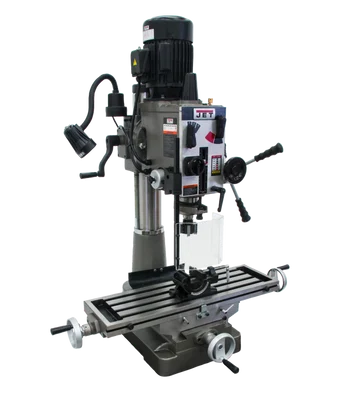

The Jet JMD-40GHPF Mill/Drill w/Pwr Dwnfd & Newall DP500 2-Ax DRO (351146) is a heavy-duty mill/drill engineered for precision and versatility. It features a 6-speed geared head, power downfeed, and Newall DP500 2-axis DRO, making it ideal for demanding drilling and milling tasks.
KEY FEATURES AND BENEFITS:
- Precision Power: Geared head delivers full power to the cutting tools, ensuring efficient operation and optimal results.
- Accurate Depth Control: Calibrated fine power downfeed and internal depth gauge guarantee precise drilling and milling depths.
- Enhanced Accuracy: Newall DP500 2-axis DRO provides accurate measurements and positioning for improved machining results.
- Versatility: Head swivels 90° left and 30° right, allowing for angled drilling and milling operations.
- Efficiency: Quick-select gear shift levers and a forward/reverse switch enable rapid spindle speed changes and easy operation.
- Safety: LED work lamp, spindle guard, and large handle grips ensure a safe working environment.
- Certified: CSA/CUS certified, meeting strict safety and electrical requirements.
SPECIFICATIONS:
- Digital Readout: Newall DP500 2-Axis DRO
- Drilling Capacity: 1-1/2 inches
- Face Mill Capacity: 4 inches
- End Mill Capacity: 3/4 inches
- Swing: 21 inches
- Spindle Taper: R8
- Motor: 1-1/2 HP, 115/230V, 1Ph
- Weight: 721 lbs
HOW TO USE:
- Setup: Securely mount the mill/drill on a sturdy work surface. Attach and adjust the desired cutting tool (drill bit or milling cutter).
- Workpiece Preparation: Securely clamp the workpiece to the milling table.
- Adjustments: Set the desired spindle speed using the gear shift levers. Adjust the power downfeed to the appropriate depth.
- Operation: Turn on the machine and engage the spindle. Carefully lower the cutting tool onto the workpiece using the power downfeed.
- Monitoring: Monitor the DRO to ensure accurate positioning and depth.
- Completion: Once the operation is complete, raise the cutting tool and turn off the machine.
BENEFITS OF USING THE Jet JMD-40GHPF Mill/Drill w/Pwr Dwnfd & Newall DP500 2-Ax DRO (351146):
- Increased productivity and efficiency due to precise operation and rapid speed changes.
- Improved accuracy and consistency in drilling and milling tasks.
- Enhanced safety features protect the operator during use.
- Versatile design allows for a wide range of applications.
FEATURES:
- Milling table for workpiece movement
- R8 spindle for compatibility with various mill tooling
- Optional Mill Drill Stand (p/n 320020) for additional stability
