Jet JMD-45VSPF VS Sq. Col. Mill/Drill w/Newall DP700 2-Ax DRO (351154)

Description

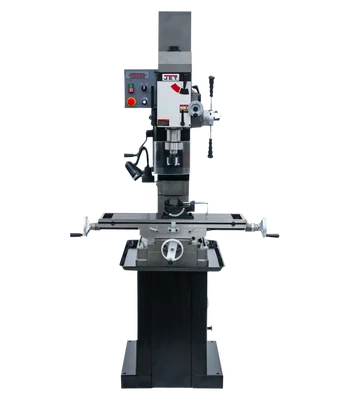

The Jet JMD-45VSPF VS Sq. Col. Mill/Drill w/Newall DP700 2-Ax DRO (351154) is a heavy-duty machine engineered for demanding drilling and milling applications. Its variable speed geared head allows for precise control over a wide range of tasks, while the square column with dovetail ways ensures rigidity and accuracy during operation. The power downfeed capability provides exceptional control for delicate cuts, and the Newall DP700 2-Axis DRO simplifies positioning and measurement.

KEY FEATURES AND BENEFITS:

• Variable Speed Geared Head: Offers a wide range of speeds for drilling and milling various materials.
• Square Column with Dovetail Ways: Provides superior rigidity and stability for accurate results.
• Power Downfeed Capability: Enables precise control of the cutting tool for delicate operations.
• Newall DP700 2-Axis DRO: Digital readout simplifies positioning and measurement on two axes.
• R8 Spindle Taper: Compatible with a wide variety of drilling and milling tooling.
• Easy-to-Read Depth Gauge: Allows for quick and accurate depth measurement.
• Full Power Delivery: Ensures optimal power transfer to cutting tools.
• Rapid Spindle Speed Changes: Improves workflow efficiency.
• Tilting Head: Offers increased versatility for angled drilling and milling tasks.
• CSA/CUS Certified: Meets strict electrical safety standards.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 115V/230V, 1-Phase
• Spindle Speeds: Variable, 50-2500 RPM
• Drilling Capacity: 1-1/2 in.
• Face Mill Capacity: 4 in.
• End Mill Capacity: 3/4 in.
• Swing: 19-11/16 in.
• Table Size: 9-1/2 in. x 32-1/4 in.
• Weight: Approximately 800 lbs (depending on source)

HOW TO USE:

1. Setup: Secure the workpiece to the mill/drill table using a vise or clamps. Ensure the machine is level and stable.
2. Power On: Turn on the machine and select the desired variable speed based on the material and operation.
3. Tool Selection: Install the appropriate drilling or milling tool into the R8 spindle taper. Tighten the spindle lock securely.
4. Positioning: Use the handwheels or jog controls to position the cutting tool over the workpiece according to your markings. Utilize the Newall DRO for precise measurement.
5. Drilling/Milling: Engage the feed mechanism (manual or power downfeed) and lower the cutting tool into the workpiece. Maintain a steady feed rate and control pressure for optimal results.
6. Depth Control: Monitor the depth gauge or DRO readout to ensure accurate drilling depth.
7. Completion: Once the operation is complete, raise the cutting tool clear of the workpiece and turn off the machine.

BENEFITS OF USING Jet JMD-45VSPF VS Sq. Col. Mill/Drill w/Newall DP700 2-Ax DRO (351154):

• Precision and Accuracy: Delivers exceptional results for demanding drilling and milling tasks.
• Versatility: Handles a wide range of drilling and milling applications with various materials.
• Durability: Built to withstand heavy-duty use in demanding environments.
• Efficiency: Variable speed control and rapid speed changes optimize workflow.
• Ease of Use: User-friendly design with intuitive controls and easy-to-read depth gauge.
• Safety: CSA/CUS certified for electrical safety.

FEATURES:

• Heavy-duty construction
• Easy-to-read internal depth gauge
• Full power to cutting tools
• Milling table allows for movement
• R8 spindle taper
• Rapid spindle speed changes
• Square column with dovetail ways
