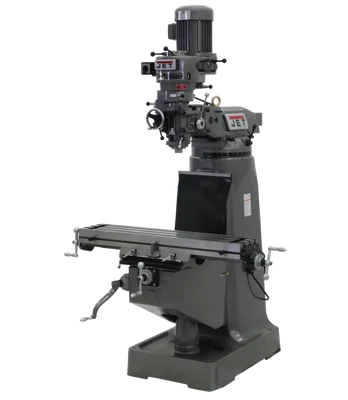

Jet JTM-1 Mill With Newall DP500 DRO (692187)

Description

The Jet JTM-1 Mill With Newall DP500 DRO (692187) is engineered for precise machining tasks, combining power and accuracy for professionals and serious hobbyists.

KEY FEATURES AND BENEFITS:

• Certified Meehanite Castings: The machine’s foundation is built on stable and durable Meehanite castings, ensuring minimal vibration and long-lasting performance.
• Precision Engineering: From the precision-bored and honed milling head to the chrome-plated quill and Class 7 spindle bearings, every aspect of the JTM-1 is designed for accuracy and reliability.
• Internally Cooled Spindle Head: The internal cooling system prevents overheating and seizing, allowing you to work continuously without worry.
• Three-Stage Power Downfeed: Enjoy precise control over your cuts with the three-stage power downfeed, which also features an automatic stop for added safety.
• Newall DP500 DRO: The digital readout system provides real-time measurements, eliminating the need for manual calculations and improving accuracy.

SPECIFICATIONS:

• Digital Readout: Newall DP500
• Table Size (L x W): 9 x 42 inches
• Quill Diameter: 3-3/8 inches
• Number of Spindle Speeds: 16
• Range of Spindle Speeds (RPM): 80 – 5,440
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Spindle Travel: 5 inches
• Head Movement: 90° R & L, 45° F & B
• Collet Capacity: 1/8 – 7/8
• Motor: 2 HP, 230V, 3Ph
• Overall Dimensions (L x W x H): 57 x 64 x 82 inches
• Weight: 2,200 lbs

HOW TO USE:

1. Preparation: Securely mount your workpiece onto the mill table using appropriate clamps or fixtures.
2. Tool Selection: Choose the correct cutting tool for your desired operation and install it in the spindle.
3. Speed and Feed Selection: Set the appropriate spindle speed and feed rate for your chosen tool and material.
4. Depth of Cut: Determine the desired depth of cut and adjust the quill or table accordingly.
5. Operation: Engage the power feed or manually operate the mill to perform the cutting operation.
6. Coolant (Optional): If using coolant, activate the pump and direct the flow to the cutting area.

BENEFITS OF USING THE Jet JTM-1 Mill With Newall DP500 DRO (692187):

• Increased Precision: The DRO system and precision engineering ensure accurate and consistent results.
• Enhanced Productivity: The powerful motor and versatile features enable efficient machining operations.
• Durability: Meehanite castings and robust construction guarantee a long-lasting machine.
• Versatility: Accommodates a wide range of tooling and applications.
• User-Friendly: Intuitive controls and ergonomic design make the mill easy to operate.

FEATURES:

• Internal coolant tank (coolant pump not included)
• Tolerance test sheet
• One-shot lubrication system
• Way covers
• Draw bar
• Tool box with tools
