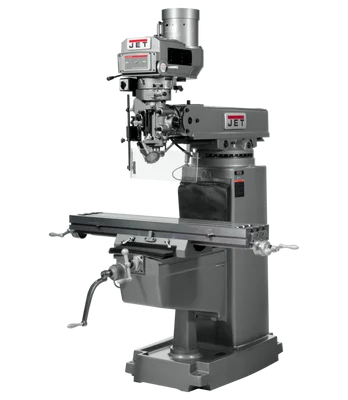

Jet JTM-1050 Mill 3-Axis ACU-RITE 200S DRO & X-Axis Powerfeed (690158)

Description

The Jet JTM-1050 Mill 3-Axis ACU-RITE 200S DRO & X-Axis Powerfeed (690158) is a high-performance vertical mill designed for demanding metalworking applications in machine shops, fabrication shops, and professional environments. This versatile machine boasts a powerful 3 HP motor, variable speed control, and a rigid Meehanite cast iron base for superior stability and vibration dampening.

KEY FEATURES AND BENEFITS:

• Construction: Rigid Meehanite cast iron base for stability and vibration dampening
• Table: Large 10″ x 50″ hardened and ground table for flatness and accuracy
• Spindle Bearings: High-precision class 7 bearings for smooth operation
• Milling Head: Precision bored and honed for clean, precise cuts
• X and Y Axes: Chrome-plated lead screws for smooth and wear-resistant travel
• Spindle: Variable speed control (70-3800 RPM) for optimal cutting performance
• Powerfeed: X-axis powerfeed for automated movement, saving time and effort
• DRO: Acu-Rite 200S DRO system for precise positioning on 3 axes (X, Y, Z)
• Power Downfeed: Three-stage with automatic stop for controlled machining
• Durability: Heavy-duty construction for long-term reliability
• Coolant System: Built-in coolant tank for effective chip removal and tool cooling (coolant pump not included)
• Maintenance: Includes one-shot lubrication system, way covers, draw bar, and toolbox with tools

SPECIFICATIONS:

• Motor Power: 3 HP, variable speed (70-3800 RPM)
• Base Material: Meehanite cast iron
• Table Size: 10″ x 50″ hardened and ground
• Spindle Bearings: High-precision class 7
• Spindle Speed: Variable, 70-3800 RPM
• Powerfeed: X-axis powerfeed
• DRO: Acu-Rite 200S DRO for X, Y, and Z axes
• Power Downfeed: Three-stage with automatic stop
• Coolant System: Built-in coolant tank (pump not included)
• Lubrication System: One-shot lubrication
• Includes: Way covers, draw bar, toolbox with tools

HOW TO USE:

1. Setup: Place the machine on a stable surface. Check all connections.
2. Power On: Turn on the machine and adjust settings as needed.
3. Load Tooling: Secure cutting tools using the draw bar in the spindle.
4. Position Workpiece: Align the workpiece on the table for machining.
5. Utilize DRO: Use the Acu-Rite 200S DRO for precise positioning on X, Y, and Z axes.
6. Operate: Use the X-axis powerfeed for automated movement during milling.
7. Maintain: Regularly lubricate using the one-shot lubrication system. Keep ways protected with covers.
8. Coolant System: Monitor and use the built-in coolant tank for effective chip removal.
9. Shutdown: Turn off the machine after use. Perform routine maintenance.

BENEFITS OF USING Jet JTM-1050 Mill 3-Axis ACU-RITE 200S DRO & X-Axis Powerfeed (690158):

• Powerful 3 HP motor with variable speed control
• Precision machining with Acu-Rite 200S DRO and X-axis powerfeed
• Rigid Meehanite cast iron base for stability
• High-precision class 7 spindle bearings for smooth operation
• Built-in coolant system for efficient chip removal and tool cooling
• Includes essential maintenance features for longevity

FEATURES:

• 3 HP motor, variable speed (70-3800 RPM)
• Meehanite cast iron base
• 10″ x 50″ hardened and ground table
• High-precision class 7 spindle bearings
• Variable speed control
• X-axis powerfeed
• Acu-Rite 200S DRO for X, Y, and Z axes
• Three-stage power downfeed with automatic stop
• Built-in coolant tank (pump not included)
• One-shot lubrication system
• Includes way covers, draw bar, toolbox with tools
