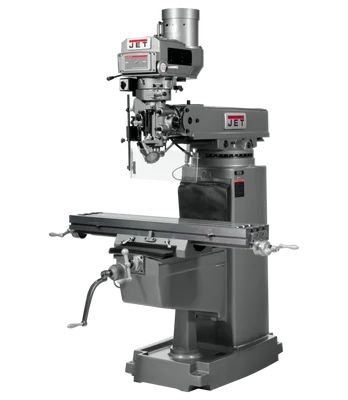

Jet JTM-1050 Mill w/ACU-RITE 203 DRO XYZ Axis Powerfeeds (690450)

Description

The Jet JTM-1050 Mill w/ACU-RITE 203 DRO XYZ Axis Powerfeeds (690450) is a versatile and powerful vertical milling machine designed for demanding metalworking applications. Featuring a robust 3HP motor with variable speeds from 70 to 3,800 RPM, this machine handles a wide range of materials with ease. The large, hardened and ground 10″ x 50″ table provides ample workspace, supported by heavy-duty Meehanite castings that ensure rigidity and minimize vibration for superior machining results.

KEY FEATURES AND BENEFITS:

• 3HP motor with variable speeds (70 – 3,800 RPM): Tackles a wide range of materials and cutting tasks.
• Large 10″ x 50″ hardened and ground table: Provides ample workspace for various projects.
• Heavy-duty Meehanite castings: Ensure rigidity and minimize vibration for superior machining results.
• High-precision class 7 spindle bearings: Enhance accuracy during operation.
• Precision-bored and honed milling head: Contributes to exceptional machining accuracy.
• ACU-RITE VUE Digital ReadOut (DRO) on X, Y, and Z axes: Provides real-time positional feedback for precise machine control.
• Powerfeeds on X, Y, and Z axes: Automate movements for efficient and consistent machining.
• Spindle travel: 5 inches for deep cuts.
• Quill diameter: 3-3/8 inches for compatibility with a wide range of tooling.
• Collet capacity: 1/8″ to 7/8″ for versatile tooling options.
• Head movement: 90° right/left and 45° forward/backward for angled milling operations.
• Internal coolant tank: Allows for coolant use (pump not included) to control chips and extend tool life.
• Hardened and ground square vertical knee ways and cross ways: Ensure long-lasting machine performance.
• Adjustable gibs: Maintain machine precision over time.
• One-shot lubrication system: Simplifies machine upkeep.
• Heavy-duty spindle brake: Enhances safety during operation.

SPECIFICATIONS:

• Motor: 3 HP, 230/460V, 3-Phase
• Table Size: 10″ x 50″
• Spindle Taper: R8
• Quill Travel: 5″
• Range of Spindle Speeds: 70 – 3,800 RPM
• Collet Capacity: 1/8″ – 7/8″
• Overall Dimensions: 96″ x 78″ x 88″
• Weight: 2,900 lbs.

HOW TO USE:

• Step 1: Power on the machine and set the desired spindle speed.
• Step 2: Utilize the ACU-RITE VUE DRO for precise positioning on X, Y, and Z axes.
• Step 3: Engage the powerfeeds on X, Y, and Z axes for automated material movement.
• Step 4: Adjust head movement for angled milling operations as needed.
• Step 5: Use the internal coolant tank for flood cooling applications to extend tool life.

BENEFITS OF USING Jet JTM-1050 Mill w/ACU-RITE 203 DRO XYZ Axis Powerfeeds (690450):

• Powerful and Versatile: Handles diverse metalworking tasks with precision and efficiency.
• Precision and Control: ACU-RITE VUE DRO and powerfeeds ensure accurate and consistent machining.
• Durable Construction: Meehanite castings and hardened ways provide long-lasting performance.
• Enhanced Safety: Includes a heavy-duty spindle brake for operator safety.

FEATURES:

• 90° right/left and 45° forward/backward.
• Allows coolant use (pump not included).
• Ensure durability.
• Maintain precision.
• Simplifies maintenance.
• Enhances safety.
