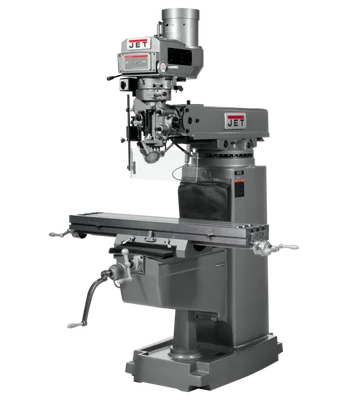

Jet JTM-1050 Mill w/ACU-RITE 300S DRO X-Y Axis Powerfeeds (690307)

Description

The Jet JTM-1050 Mill w/ACU-RITE 300S DRO X-Y Axis Powerfeeds (690307) is a versatile and powerful milling machine designed for professional machinists and hobbyists alike. Featuring a durable Meehanite cast iron base and table, this high-quality mill offers superior vibration dampening and stability during operation. The large worktable (10″ x 50″) provides ample space for projects, ensuring precise workpiece positioning with its hardened and ground surface.

KEY FEATURES AND BENEFITS:

• Variable speed spindle (70 to 3,800 RPM): Allows versatile machining of various materials.
• High-precision class 7 spindle bearings: Ensure smooth operation and minimal runout.
• Precision bored and honed milling head: Contributes to clean and high-quality cuts.
• X and Y-axis power feeds: Automate table movement for increased productivity.
• Three-stage power downfeed with automatic stop: Simplifies milling tasks and ensures consistency.
• ACU-RITE 300S DRO (Digital ReadOut): Provides digital readouts for X, Y, and Z-axis positions.
• Large diameter quill: Offers added rigidity for demanding applications.
• Internal coolant system (coolant pump not included): Enables use of coolant for extended tool life and improved chip control.
• Heavy-duty motor drive: Provides ample power for various milling tasks.
• Adjustable gibs throughout: Fine-tune slideways for maintaining accuracy over time.
• One-shot lubrication system: Simplifies machine maintenance.
• Way covers: Protect linear ways from dust and debris.
• Draw bar: Ensures secure attachment of milling tools.
• Tool box with tools: Includes basic tools for immediate operation.

SPECIFICATIONS:

• Table Size (L x W): 10 x 50 in.
• Spindle Speeds: Variable (70 to 3,800 RPM)
• Spindle Taper: R8
• Motor: Heavy-duty, sufficient for various milling tasks
• Quill Diameter: Large for added rigidity

HOW TO USE:

• Step 1: Power on the machine and initialize the ACU-RITE 300S DRO.
• Step 2: Set spindle speed and engage X-Y axis power feeds for automated table movement.
• Step 3: Load your machining program and set tool offsets using the digital readouts.
• Step 4: Utilize the internal coolant system (if equipped) for enhanced chip control.
• Step 5: Begin milling operations, adjusting gibs as needed for optimal performance.

BENEFITS OF USING Jet JTM-1050 Mill w/ACU-RITE 300S DRO X-Y Axis Powerfeeds (690307):

• Precision and Power: Achieve high-quality cuts with the variable speed spindle and high-precision bearings.
• Productivity: Increase efficiency with automated X-Y axis power feeds and three-stage power downfeed.
• User-Friendly Features: Simplify operation with the ACU-RITE 300S DRO and intuitive controls.
• Durable Construction: Meehanite cast iron base ensures stability and longevity.

FEATURES:

• Enhances tool life and chip control.
• Provides sufficient power.
• Maintains accuracy over time.
• Simplifies maintenance.
• Protect linear ways.
• Secure tool attachment.
• Includes essential tools.
