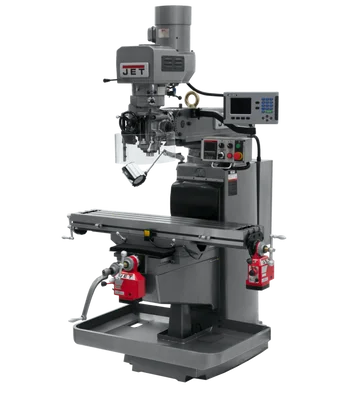

Jet JTM-1050EVS2/230 Mill 3-Axis Acu-Rite 200S DRO KNEE XY (690626)

Description

The Jet JTM-1050EVS2/230 Mill 3-Axis Acu-Rite 200S DRO KNEE XY (690626) is a robust and versatile electronic variable speed milling machine designed for professional applications in machine shops and fabrication environments. This powerful 3HP motor delivers a wide speed range of 60 to 4,500 RPM, allowing you to tackle various milling tasks on different materials.

KEY FEATURES AND BENEFITS:

• Powerful Motor: 3HP motor with a speed range of 60 to 4,500 RPM for versatile milling tasks.
• Durable Construction: Rigid Meehanite cast iron base ensures stability and vibration dampening.
• Precision Ground Table: Table and ways are hardened up to 54 HRC for accurate machining.
• Convenient Controls: User-friendly control panel with Acu-Rite 200S DRO system.
• Automatic Oiler: Provides consistent lubrication for smooth operation.
• Power Feeds: X and Y-axis power feeds for automated table movement.
• Safety Features: Includes emergency stop button, heavy-duty spindle brake, and safety shield.
• Work Lamp: Built-in LED work lamp for improved visibility.
• Spacious Table: 10″ x 50″ table size for ample workspace.
• Flexibility: 5 inches spindle travel and maximum 20-3/4 inches distance between spindle and table.
• Warranty: Backed by JET’s two-year warranty for peace of mind.

SPECIFICATIONS:

• Motor Power: 3 HP
• Speed Range: 60 to 4,500 RPM
• Table Size: 10″ x 50″
• Spindle Travel: 5 inches
• Max Distance Between Spindle and Table: 20-3/4 inches
• Table and Ways Hardness: Up to 54 HRC
• Construction: Meehanite cast iron
• Control System: Acu-Rite 200S DRO
• Power Feeds: X and Y-axis
• Safety Features: Emergency stop, spindle brake, safety shield
• Additional Features: LED work lamp, chip pan

HOW TO USE:

1. Setup the Machine: Ensure the machine is properly installed and connected to a power source.
2. Select Speed: Use the control panel to set the desired speed within the 60 to 4,500 RPM range.
3. Secure Workpiece: Place and secure the workpiece on the table using appropriate clamps.
4. Adjust Table Position: Use the X and Y-axis power feeds to position the table for the desired operation.
5. Begin Milling: Start the machine and carefully perform the milling operation.
6. Use Safety Features: Utilize the emergency stop button and spindle brake as needed for safety.
7. Maintain Machine: Regularly check the lubrication system and clear any debris using the chip pan.

BENEFITS OF USING Jet JTM-1050EVS2/230 Mill 3-Axis Acu-Rite 200S DRO KNEE XY (690626):

• Enhanced Versatility: Wide speed range and spacious table allow for diverse milling tasks.
• Increased Efficiency: Power feeds and automatic oiler save time and reduce manual effort.
• Improved Safety: Multiple safety features provide a secure operating environment.
• High Precision: Precision ground table and stable construction ensure accurate results.
• Long-Term Reliability: Durable materials and a comprehensive warranty ensure lasting performance.

FEATURES:

• Variable Speed Control: Adjust speeds from 60 to 4,500 RPM to match material requirements.
• Robust Build: Constructed with Meehanite cast iron for stability and durability.
• Accurate Table: Hardened and precision ground table ensures precise machining.
• Advanced DRO: Features an Acu-Rite 200S digital readout system for easy control.
• Automatic Lubrication: The automatic oiler provides regular lubrication.
• Automated Movements: X and Y-axis power feeds allow for automated table movements.
• Comprehensive Safety: Includes an emergency stop button, spindle brake, and safety shield.
• Built-In Lighting: Integrated LED work lamp enhances visibility.
• Spacious Working Area: 10″ x 50″ table size offers ample space for various projects.
• Adjustable Spindle: 5 inches spindle travel and a max distance of 20-3/4 inches from spindle to table.
