Description

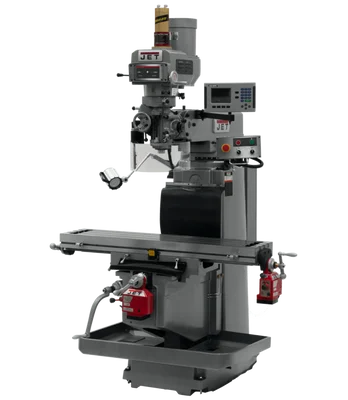

Jet JTM-1254RVS Mill w/ ACU-RITE 203 DRO XY Powerfeeds & APD (698111) is a heavy-duty vertical milling machine designed for precise metalworking applications. It features a variable speed motor, R-8 spindle taper, digital readout (ACU-RITE 203), X and Y axis power feeds, and a pneumatic air power drawbar.
KEY FEATURES AND BENEFITS
- Precision & Durability: Combines robust Meehanite® castings, hardened table & precision bearings for accurate results.
- Variable Speed Control: Tackle a wide range of materials with adjustable spindle speeds (80-3,800 RPM).
- Automated Machining: X & Y axis power feeds ensure consistent and efficient operation.
- Precise Positioning: ACU-RITE 203 DRO simplifies measurement and reduces errors.
- Ease of Use: Automatic lubrication, quick-change tooling system, and new leveling system enhance workflow.
SPECIFICATIONS
- Table size: 12″ x 54″
- Spindle taper: R-8
- Spindle travel: 5″
- Range of spindle speeds: 80 – 3,800 RPM
- Motor: 5 HP, 230/460V, 3-Phase
- Overall dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
- Weight: 3,969 lbs.
HOW TO USE
- Setup: Secure your workpiece to the table using clamps or a vise.
- Power On & Speed Selection: Turn on the machine and adjust the spindle speed based on your material and desired outcome.
- Positioning: Utilize the ACU-RITE 203 DRO to precisely position the cutting tool relative to the workpiece.
- Machining: Engage the power feeds (X & Y) and initiate the cutting operation. The machine will handle the automated movement while you monitor progress.
- Tool Changes: Utilize the pneumatic air power drawbar for quick and effortless tool swaps.
- Machine Maintenance: Refer to the user manual for proper lubrication schedules and cleaning procedures.
BENEFITS OF USING Jet JTM-1254RVS Mill w/ ACU-RITE 203 DRO XY Powerfeeds & APD
- High-Quality Results: Achieve precise cuts and finishes on various metal components.
- Increased Efficiency: Power feeds and automatic lubrication streamline the machining process.
- Reduced Errors: Digital readout minimizes positioning mistakes.
- User-Friendly Design: Features like quick tool changes and easy leveling enhance workflow.
- Versatility: Handles a broad range of metalworking tasks with variable speed control and R-8 tooling compatibility.
FEATURES
- Certified Meehanite® Castings for vibration dampening and stability.
- Hardened and ground table for wear resistance.
- Chrome lead screws on X and Y axis for smooth travel.
- Turcite B on X and Y axis for low friction.
- Three-stage power downfeed with automatic stop for controlled feeding.
- Heavy-duty spindle brake for quick stopping power.
- Locks on all moveable surfaces for safety.
- Adjustable gibs throughout for precise fit.
- Way covers to protect the ways from chips and debris.
- Draw bar for easy tool removal.
- Tool box with tools for basic maintenance.
- CSA/CUS certified for electrical safety.
- Spindle guard and LED machine lamp for improved visibility.
- Chip pan for easy waste collection.
